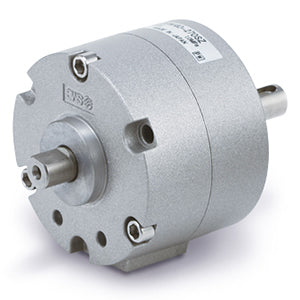

SMC CRB2BW30180SZ (CRB2BW30-180SZ) - Vane Type Rotary Actuator, Size 30 Single Vane, 180° Rotation Angle
SMC CRB2BW30180SZ Vane Type Rotary Actuator — Size 30 body with 180° rotation angle. Single vane, double shaft with single flat, basic mounting, side ported, M5 x 0.8 port, 1.0 MPa max. operating pressure, air (non-lube), 5 to 60°C.
MPN: CRB2BW30-180SZ · SKU: CRB2BW30180SZ
CRB2BW30-180SZ Applications
The SMC CRB2BW30180SZ is used in automated assembly, packaging, electronics and material handling machinery where a compact 180° rotary motion is required. It is suited for part flipping and inverting, gripper indexing and diverting or opening and closing of gates and chutes. Its size 30 vane construction delivers smooth bi-directional rotation from a very short body, and the double shaft with single flat lets a load be driven from either end while an internal rubber bumper absorbs end-of-rotation shock for reliable, repeatable cycling.
CRB2BW30-180SZ Specifications
| Brand | SMC | Manufacturer Part No. | CRB2BW30-180SZ |
| Product Type | Vane Type Rotary Actuator | Series | CRB2 (Standard Type) |
| Size | 30 | Rotating Angle | 180° |
| Vane Type | Single Vane | Mounting Style | B (Basic) |
| Shaft Type | W (Double Shaft with Single Flat) | Connecting Port | Side Ported |
| Port Size | M5 x 0.8 | Fluid | Air (Non-lube) |
| Max. Operating Pressure | 1.0 MPa | Min. Operating Pressure | 0.15 MPa |
| Proof Pressure | 1.5 MPa | Ambient and Fluid Temperature | 5 to 60°C |
| Allowable Kinetic Energy | 0.02 J | Allowable Radial Load | 30 N |
| Allowable Thrust Load | 25 N | Auto Switch | None (Without Auto Switch) |
| Angle Adjuster | None | Weight | 194 g |
| RoHS | Compliant |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
