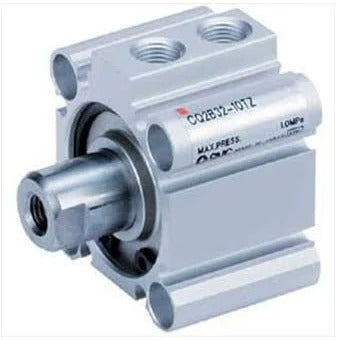

SMC CQ2B325SZ (CQ2B32-5SZ) - Compact Air Cylinder, 32mm Bore, 5mm Stroke

SMC CQ2B325SZ Compact Air Cylinder — 32mm bore, 5mm stroke. SMC CQ2 series compact air cylinder, single acting spring return (S), 32mm bore, 5mm stroke, Z variation. Thin, space-saving body for tight-clearance mounting.

MPN: CQ2B32-5SZ · SKU: CQ2B325SZ

CQ2B32-5SZ Applications

The CQ2B32-5SZ is a thin compact pneumatic cylinder with a 32mm bore and short 5mm stroke in a single-acting spring-return (Z) configuration. Its low-profile design saves mounting space in confined machinery, making it suited to clamping, stopping, lifting, and short-travel positioning within jigs, fixtures, and dense automation layouts where axial length is constrained.

CQ2B32-5SZ Specifications
