SMC CQ2A10025DMZ (CQ2A100-25DMZ) - Compact Cylinder, 100 mm Bore, 25 mm Stroke

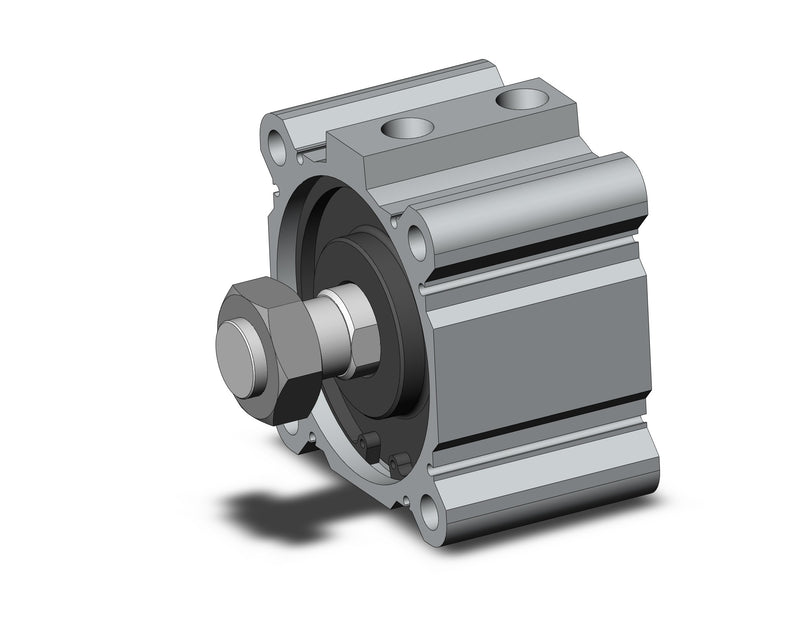

SMC CQ2A10025DMZ Compact Cylinder — Ø100 mm bore with rod end male thread. Double Acting, 100 mm bore, 25 mm stroke, Rc/M Thread port, Rod End Male Thread, Both Ends Tapped Style mounting, without built-in magnet.
MPN: CQ2A100-25DMZ · SKU: CQ2A10025DMZ
CQ2A100-25DMZ Applications
The SMC CQ2A10025DMZ is specified when a machine needs Ø100 mm bore with rod end male thread. This 100 mm bore double acting compact cylinder suits assembly jigs, clamping and part-transfer stations, and small-footprint pick-and-place work where panel depth is tight. The CQ2 body is deliberately short for its bore, so it fits fixtures that a standard ISO cylinder would not clear, while the Rc porting and Both Ends Tapped mounting let it drop into existing plates without reworking the manifold or the bolt pattern.
CQ2A100-25DMZ Specifications
| Brand | SMC | Manufacturer Part No. | CQ2A100-25DMZ |
| Product Type | Compact Cylinder | Series | CQ2 (CQ2 Z Series) |
| SMC Series Title | CQ2 Z Series Compact Cylinder: Standard Type Double Acting, Single Rod | Type | Standard Type |
| Action | Double Acting | Bore Size | 100 mm |
| Cylinder Stroke | 25 mm (Standard Stroke) | Port Thread Type | Rc/M Thread |
| Mounting Style | A - Both Ends Tapped Style | Built-in Magnet | Without Built-in Magnet |
| Body Option | Rod End Male Thread | Auto Switch Mounting Groove | Yes - Ø12-Ø25 2 sides / Ø32-Ø100 4 sides |
| Auto Switch | Without Auto Switch | Made To Order | Standard |
