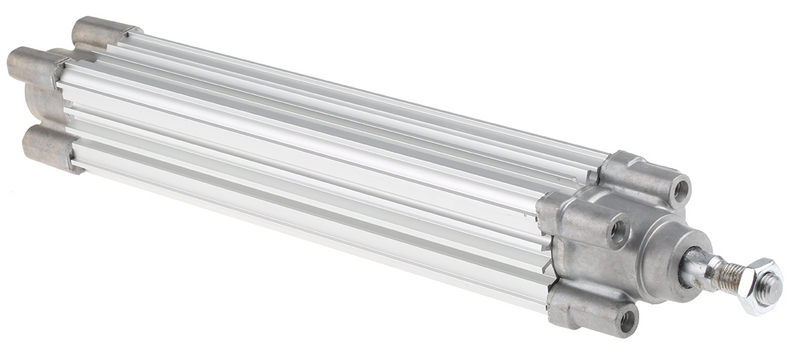

SMC CP96SDB50200C (CP96SDB50-200C) - ISO 15552 Air Cylinder, 50mm Bore, 200mm Stroke
SMC CP96SDB50200C ISO 15552 Air Cylinder — 50mm bore with 200mm stroke. ISO 15552 standard profile tie-rod cylinder, double acting, single rod, 50mm bore, 200mm stroke, basic mounting, air cushion on both ends plus bumper cushion, built-in magnet.
MPN: CP96SDB50-200C · SKU: CP96SDB50200C
CP96SDB50-200C Applications
The SMC CP96SDB50200C is the 50mm bore, 200mm stroke build of the CP96 ISO 15552 range. It is used in general factory automation where a standardised tie-rod cylinder envelope is required. It is suited to conveyor stop and transfer gates, machine guarding and clamping, and pusher or lifting stations. The air cushion on both ends combined with the bumper cushion absorbs end-of-stroke energy, shortening cycle time while cutting the metallic impact noise heard on conventional cushioned cylinders.
CP96SDB50-200C Specifications
| Brand | SMC | Manufacturer Part No. | CP96SDB50-200C |
| Product Type | ISO 15552 Air Cylinder | Series | CP96 |
| SMC Series Description | CP96 Series ISO Standard (15552) Air Cylinder:Standard Type Double Acting,Single Rod | With Auto Switch (Built-in Magnet) | D - Without Auto Switch (Built-In Magnet) |
| Mounting Style | B - Basic | Bore Size | Bore Size 50 mm |
| Cylinder Stroke | Standard Stroke 200 mm | Cushion | C - Air Cushion On Both Ends+Bumper Cushion |
| Rod Boot | Without Rod Boot | Auto Switch | Without Auto Switch |
| Number Of Auto Switches | 2 pcs. Or None | Made To Order | Standard |
| Standard | ISO 15552 | Action | Double Acting, Single Rod |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
