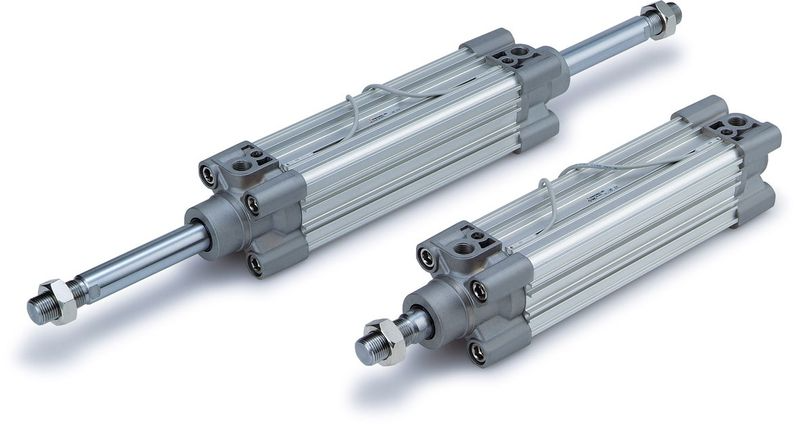

SMC CP96SDB3260C (CP96SDB32-60C) - ISO Air Cylinder, 32mm Bore, 60mm Stroke

SMC CP96SDB3260C ISO Air Cylinder — 32mm bore, 60mm stroke, air cushion both ends plus bumper cushion. SMC CP96SDB32-60C is a CP96 Series ISO Standard (15552) Air Cylinder, Standard Type, Double Acting, Single Rod. Confirmed on the official SMC WEB Catalog decoder: With Auto Switch (Built-in Magnet) = D, Without Auto Switch (Built-In Magnet); Mounting Style = B, Basic; Bore Size = 32, Bore Size 32 mm; Cylinder Stroke = 60 (stroke 60 mm, not 260 mm); Rod Boot = Without Rod Boot; Dual Stroke Mark = Without Two Stroke Mark; Cylinder Stroke 2 = Without Cylinder Stroke 2; Cushion = C, Air Cushion On Both Ends + Bumper Cushion; Auto Switch = Without Auto Switch; Number Of Auto Switches = 2 pcs. Or None; Made To Order = Standard.

MPN: CP96SDB32-60C · SKU: CP96SDB3260C

CP96SDB32-60C Applications

The CP96SDB32-60C is a short-stroke ISO 15552 profile cylinder for compact clamping, stopping, gating and part-ejection duties where only 60 mm of travel is needed. The 32 mm bore delivers modest thrust in a standardised envelope, so mountings and accessories interchange with any ISO 15552 cylinder. Air cushions at both ends plus the bumper cushion soften end-of-stroke impact and cut noise on fast cycling machines. The built-in magnet allows auto switches to be fitted for position confirmation.

CP96SDB32-60C Specifications
