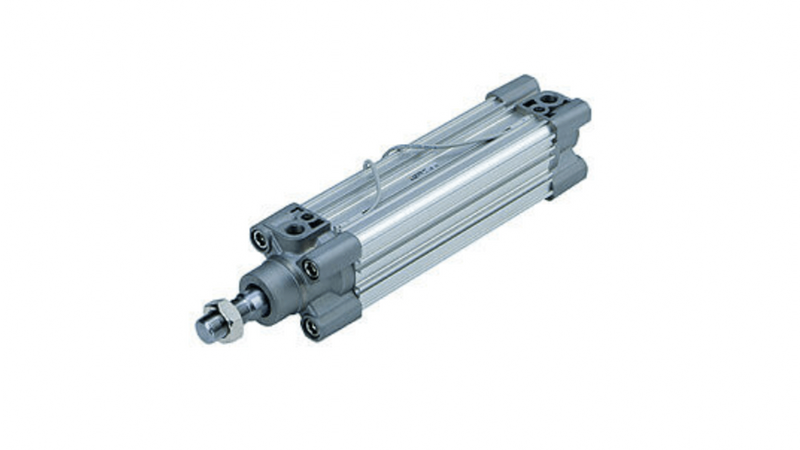

SMC CP96SDB125600 (CP96SDB125-600) - ISO Air Cylinder, 125mm Bore, 600mm Stroke

SMC CP96SDB125600 ISO Air Cylinder — 125mm bore, 600mm stroke, air cushion, basic mount, built-in magnet. SMC CP96SDB125-600 is a CP96 Series ISO Standard (15552) Air Cylinder, standard type, double acting, single rod. Verified on the official SMC WEB Catalog part-number decoder: Bore Size 125 = 125 mm; Cylinder Stroke 600 = Standard Stroke 600 mm; Mounting Style B = Basic; D = built-in magnet (without auto switch); Cushion = Air Cushion; without rod boot; without two-stroke mark; auto switches not included (2 pcs. or none); Made to Order = Standard. SMC lists the CP96 series as up to 15% lighter than the previous generation, with a new cushion method (air cushion + bumper cushion) that shortens cycle time and reduces metal noise when the piston stops at end of stroke. Related SMC parts for this bore: CS96-125 seal kit, GKM30-54 rod clevis (ISO 8140).

MPN: CP96SDB125-600 · SKU: CP96SDB125600

CP96SDB125-600 Applications

The 600 mm stroke on a 125 mm bore suits long-travel heavy actuation: bin and hopper gates, tipping frames, large lift and transfer mechanisms, and press feeders in steel, cement, and bulk-handling plants. The ISO 15552 profile body interchanges with any conforming cylinder and mounts with standard ISO accessories. Air cushioning is important at this stroke length to absorb load momentum, and the built-in magnet allows SMC auto switches to be clamped anywhere along the barrel for position sensing.

CP96SDB125-600 Specifications
