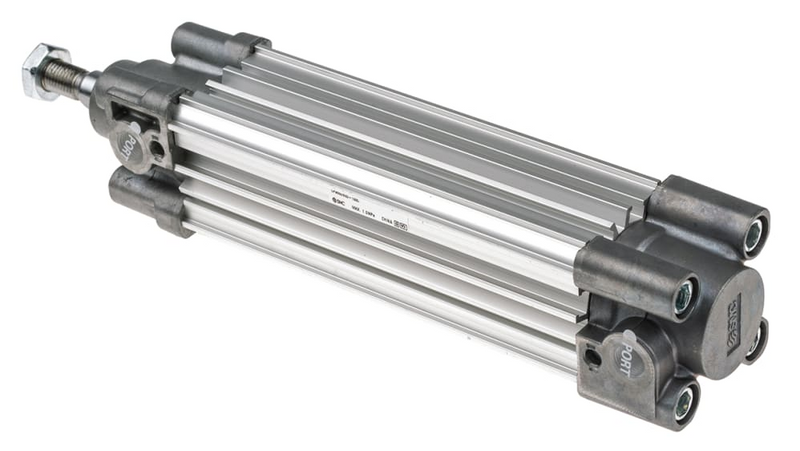

SMC CP96SDB125150 (CP96SDB125-150) - ISO Air Cylinder, 125mm Bore, 150mm Stroke

SMC CP96SDB125150 ISO Air Cylinder — 125mm bore, 150mm stroke, single rod, standard air cushion (no C suffix, no bumper cushion). SMC CP96SDB125-150 is a CP96 Series ISO Standard (15552) profile air cylinder, standard type, double acting, single rod. Bore size 125 mm, standard stroke 150 mm. Mounting style B (basic mount). Built-in magnet (D) for auto switch mounting; auto switches are not supplied and no rod boot is fitted. The cushion field carries no C suffix: SMC's official decoder resolves this blank cushion code to standard Air Cushion (air cushion only, without the additional bumper cushion offered by the C option). Standard (non made-to-order) build; matching seal kit is CS96-125..

MPN: CP96SDB125-150 · SKU: CP96SDB125150

CP96SDB125-150 Applications

At 125 mm bore this ISO 15552 cylinder delivers very high thrust, suited to heavy pressing, clamping, tipping and lifting duties in metalworking, automotive and heavy packaging plant. The 150 mm stroke keeps the actuator compact for its bore. Standard air cushioning at both ends decelerates the piston before it reaches the end cover, and the built-in magnet lets auto switches be fitted to the profile grooves for end-position feedback without any extra machining.

CP96SDB125-150 Specifications
