SMC CP96SDB10080CW (CP96SDB100-80CW) - ISO Air Cylinder, 100mm Bore, 80mm Stroke

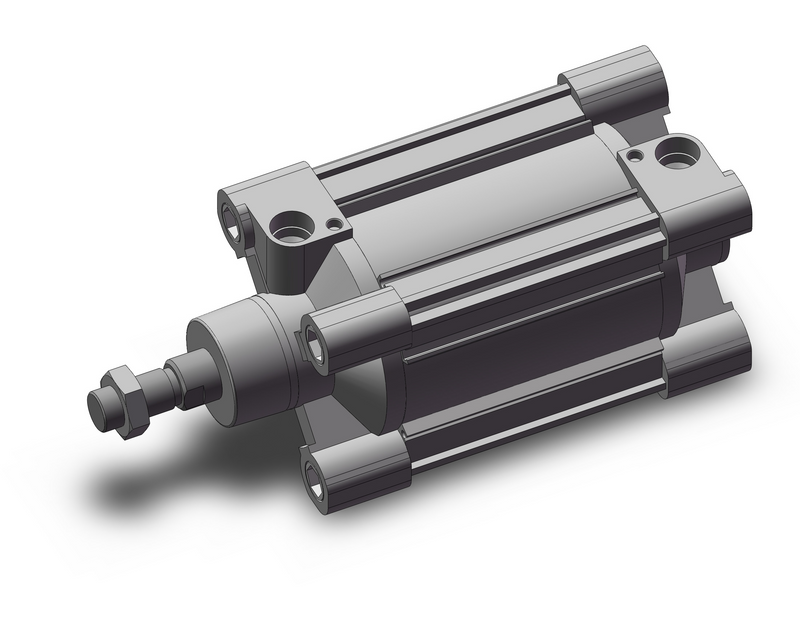

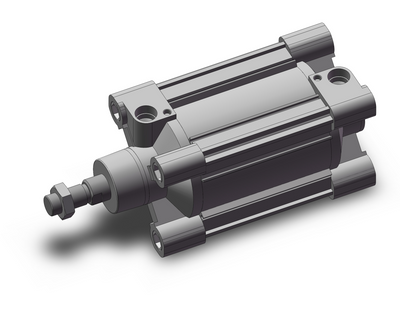

SMC CP96SDB10080CW ISO Air Cylinder — 100mm bore, 80mm stroke, DOUBLE ROD (W), air cushion on both ends + bumper cushion (C). SMC CP96SDB100-80CW is a CP96 Series ISO Standard (15552) profile air cylinder, standard type, double acting, DOUBLE ROD. Bore size 100 mm, standard stroke 80 mm. Mounting style B (basic mount). Built-in magnet (D) for auto switch mounting; auto switches are not supplied and no rod boot is fitted. Cushion option C provides air cushion on both ends plus bumper cushion. The W suffix is the SMC Rod option code for Double Rod, giving a piston rod protruding from both end covers - this is the key difference from the single-rod CP96SDB100-80C. Standard (non made-to-order) build; matching seal kit is CS96W-100..

MPN: CP96SDB100-80CW · SKU: CP96SDB10080CW

CP96SDB100-80CW Applications

The double-rod construction of this 100 mm bore, 80 mm stroke ISO 15552 cylinder puts a piston rod out of both end covers, which doubles guidance stiffness and resists side load and rotation far better than a single-rod cylinder. Use it where the load must be guided by the cylinder itself, where equal thrust and speed are needed in both directions, or where the rear rod carries a stop, a sensor flag or a second tool. Air plus bumper cushioning damps both ends of travel.
