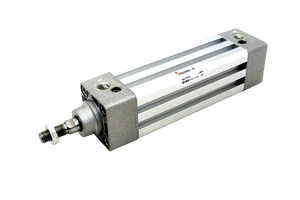

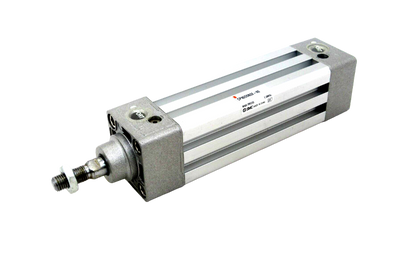

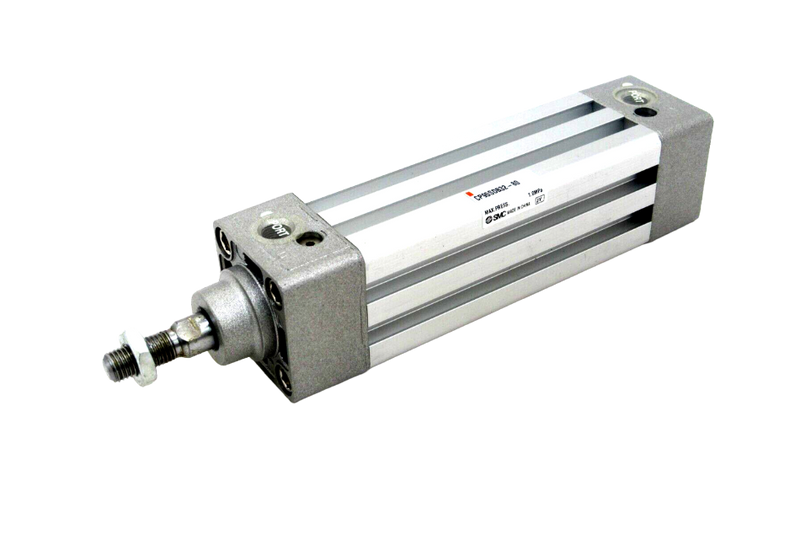

SMC CP95SDB3280 (CP95SDB32-80) - Air Cylinder, 32 mm bore, 80 mm stroke

SMC CP95SDB3280 Air Cylinder — 32 mm bore, 80 mm stroke, basic mount (no bracket), standard rod with built-in magnet, ISO/VDMA profile design. SMC CP95 Series profile design ISO/VDMA (ISO 15552) air cylinder, double acting, single rod, with enclosed tie-rods in an extruded aluminium profile barrel. Per SMC's official CP95 catalogue how-to-order: S = Standard piston rod type (alternatives K = Non-rotating, Q = Low friction); D = With built-in magnet (Nil = non-magnetic); B = basic model, mounting accessories (foot, flange, clevis) ordered separately; 32 = 32 mm bore; 80 = 80 mm stroke (a listed standard stroke for ø32). Official CP95 technical specifications: action double acting single rod; fluid compressed air filtered to <10 um, lubricated or non-lubricated; non-lube type, lubrication not required; proof pressure 1.5 MPa; max operating pressure 1.0 MPa; min operating pressure 0.05 MPa; working pressure 0.05-1.0 MPa; piston speed 50-1000 mm/s; fluid and ambient temperature -10 to +60 C (-10 to +70 C without magnet); fully adjustable air cushioning at both ends as standard, cushioning stroke 19 mm at ø32; rod diameter 12 mm, hard chromed steel; piston rod thread M10x1.25; port size G1/8; mounting position any; max stroke for ø32 is 700 mm.

MPN: CP95SDB32-80 · SKU: CP95SDB3280

CP95SDB32-80 Applications

The CP95SDB32-80 is a 32 mm bore, 80 mm stroke ISO/VDMA profile-design pneumatic cylinder with basic (bracket-less) mounting and a built-in magnet for auto switches. Its ISO 15552 envelope makes it a direct interchange for other standards-compliant cylinders, and the compact 80 mm stroke suits short pushing, indexing, clamping and diverting motions on packaging, assembly and conveying machinery. Adjustable air cushions at both stroke ends absorb kinetic energy and reduce end-of-stroke shock and noise.
