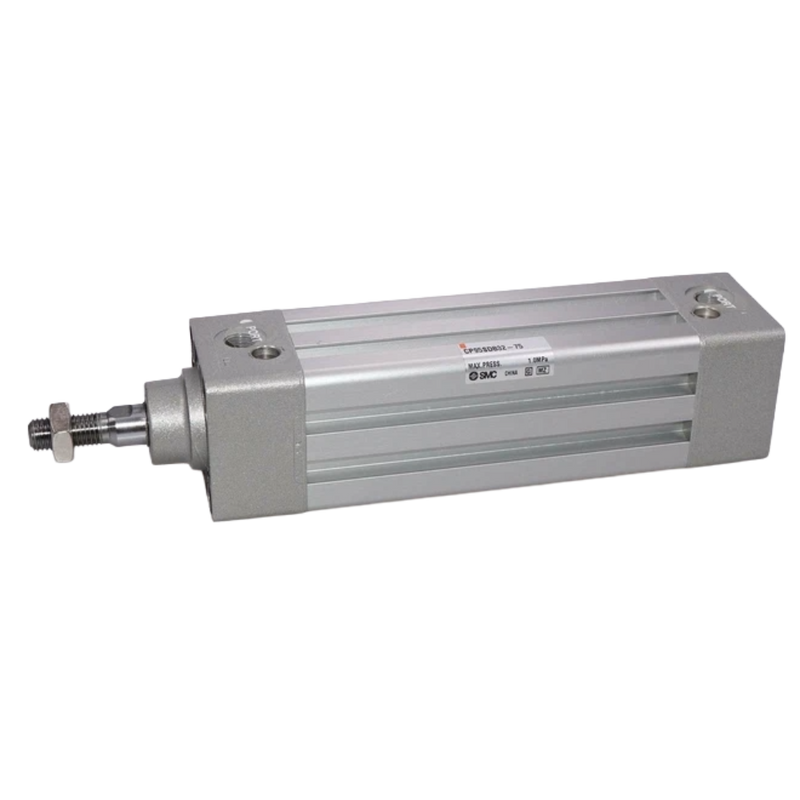

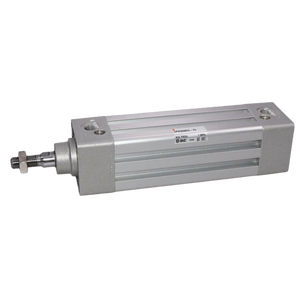

SMC CP95SDB32200 (CP95SDB32-200) - Air Cylinder, 32 mm bore, 200 mm stroke

SMC CP95SDB32200 Air Cylinder — 32 mm bore, 200 mm stroke, basic mount (no bracket), standard rod with built-in magnet, ISO/VDMA profile design. SMC CP95 Series profile design ISO/VDMA (ISO 15552) air cylinder, double acting, single rod, with enclosed tie-rods in an extruded aluminium profile barrel. Per SMC's official CP95 catalogue how-to-order: S = Standard piston rod type (alternatives K = Non-rotating, Q = Low friction); D = With built-in magnet (Nil = non-magnetic); B = basic model, mounting accessories (foot, flange, clevis) ordered separately; 32 = 32 mm bore; 200 = 200 mm stroke (a listed standard stroke for ø32). Official CP95 technical specifications: action double acting single rod; fluid compressed air filtered to <10 um, lubricated or non-lubricated; non-lube type, lubrication not required; proof pressure 1.5 MPa; max operating pressure 1.0 MPa; min operating pressure 0.05 MPa; working pressure 0.05-1.0 MPa; piston speed 50-1000 mm/s; fluid and ambient temperature -10 to +60 C (-10 to +70 C without magnet); fully adjustable air cushioning at both ends as standard, cushioning stroke 19 mm at ø32; rod diameter 12 mm, hard chromed steel; piston rod thread M10x1.25; port size G1/8; mounting position any; max stroke for ø32 is 700 mm.

MPN: CP95SDB32-200 · SKU: CP95SDB32200

CP95SDB32-200 Applications

The CP95SDB32-200 is a 32 mm bore, 200 mm stroke ISO/VDMA profile-design pneumatic cylinder built to ISO 15552 mounting dimensions, so it drops into existing machine frames from any compliant brand. The longer 200 mm stroke suits pushing, ejecting, gate and lift duties where the load must travel further, while the enclosed tie-rod profile keeps the outside clean and provides four grooves for auto switches. The built-in magnet enables end-of-stroke sensing, and fully adjustable air cushions at both ends absorb impact energy at high piston speeds.

CP95SDB32-200 Specifications
