SMC CP95SDB32100 (CP95SDB32-100) - Air Cylinder, 32 mm bore, 100 mm stroke

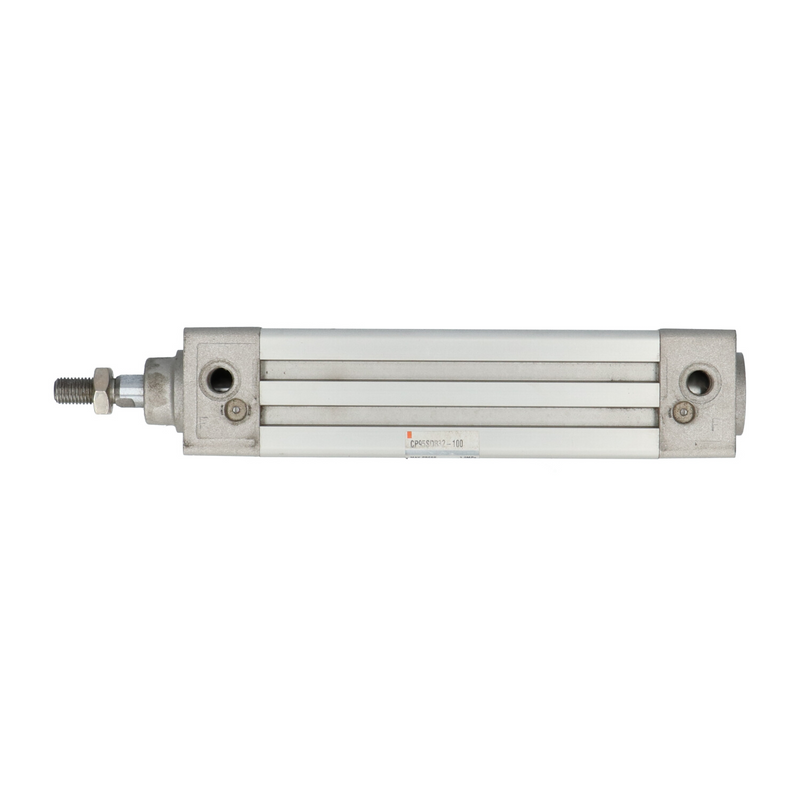

SMC CP95SDB32100 Air Cylinder — 32 mm bore, 100 mm stroke, basic mount (no bracket), standard rod with built-in magnet, ISO/VDMA profile design. SMC CP95 Series profile design ISO/VDMA (ISO 15552) air cylinder, double acting, single rod, with enclosed tie-rods in an extruded aluminium profile barrel. Per SMC's official CP95 catalogue how-to-order: S = Standard piston rod type (alternatives K = Non-rotating, Q = Low friction); D = With built-in magnet (Nil = non-magnetic); B = basic model, mounting accessories (foot, flange, clevis) ordered separately; 32 = 32 mm bore; 100 = 100 mm stroke (a listed standard stroke for ø32). Official CP95 technical specifications: action double acting single rod; fluid compressed air filtered to <10 um, lubricated or non-lubricated; non-lube type, lubrication not required; proof pressure 1.5 MPa; max operating pressure 1.0 MPa; min operating pressure 0.05 MPa; working pressure 0.05-1.0 MPa; piston speed 50-1000 mm/s; fluid and ambient temperature -10 to +60 C (-10 to +70 C without magnet); fully adjustable air cushioning at both ends as standard, cushioning stroke 19 mm at ø32; rod diameter 12 mm, hard chromed steel; piston rod thread M10x1.25; port size G1/8; mounting position any; max stroke for ø32 is 700 mm.

MPN: CP95SDB32-100 · SKU: CP95SDB32100

CP95SDB32-100 Applications

The CP95SDB32-100 is a 32 mm bore, 100 mm stroke ISO/VDMA profile-design pneumatic cylinder for machine builders who need interchangeable ISO 15552 mounting dimensions. The basic (bracket-less) body bolts directly or accepts SMC's foot, flange and clevis accessories, and the built-in magnet lets D-series auto switches drop into the tube grooves for end-position sensing. Adjustable air cushions at both ends absorb kinetic energy, making it suitable for conveying, pressing, clamping and general transfer duties on packaging and process lines.
