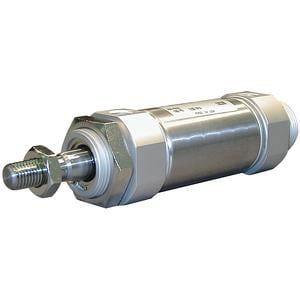

SMC CM2BZ2025XB12 (CM2BZ20-25-XB12) - Air Cylinder, 20 mm bore, 25 mm stroke

SMC CM2BZ2025XB12 Air Cylinder — 20 mm bore, 25 mm stroke, boss-cut basic (BZ) mount, made-to-order XB12 external stainless steel, without built-in magnet. SMC CM2 Series round-body air cylinder, standard type, double acting, single rod. Official SMC WEB Catalog decode of CM2BZ20-25-XB12: With Auto Switch (Built-in Magnet) = Nil (Without Auto Switch, i.e. WITHOUT built-in magnet); Type = Pneumatic; Mounting Style = BZ (Boss-cut Basic Style); Bore Size = 20 mm; Port Thread Type = Nil (Rc); Cylinder Stroke = 25 mm; Suffix = Nil (Without Rod Boot, Rubber Bumper); Made to Order = XB12 (External Stainless Steel). SMC notes production of the base CM2 series was discontinued in October 2013 (CM2-Z / CM2-Z1 is the successor series).

MPN: CM2BZ20-25-XB12 · SKU: CM2BZ2025XB12

CM2BZ20-25-XB12 Applications

The CM2BZ20-25-XB12 is a compact 20 mm bore, 25 mm stroke double-acting round-body air cylinder with a boss-cut basic mounting body, supplied to SMC's XB12 made-to-order specification with external stainless steel parts. The stainless exterior suits washdown, damp or mildly corrosive environments such as food, packaging and general processing lines. Rubber bumpers absorb end-of-stroke shock. Being a non-D part number, it has no built-in magnet, so it cannot accept auto switches and is used where end-position sensing is not required.

CM2BZ20-25-XB12 Specifications
