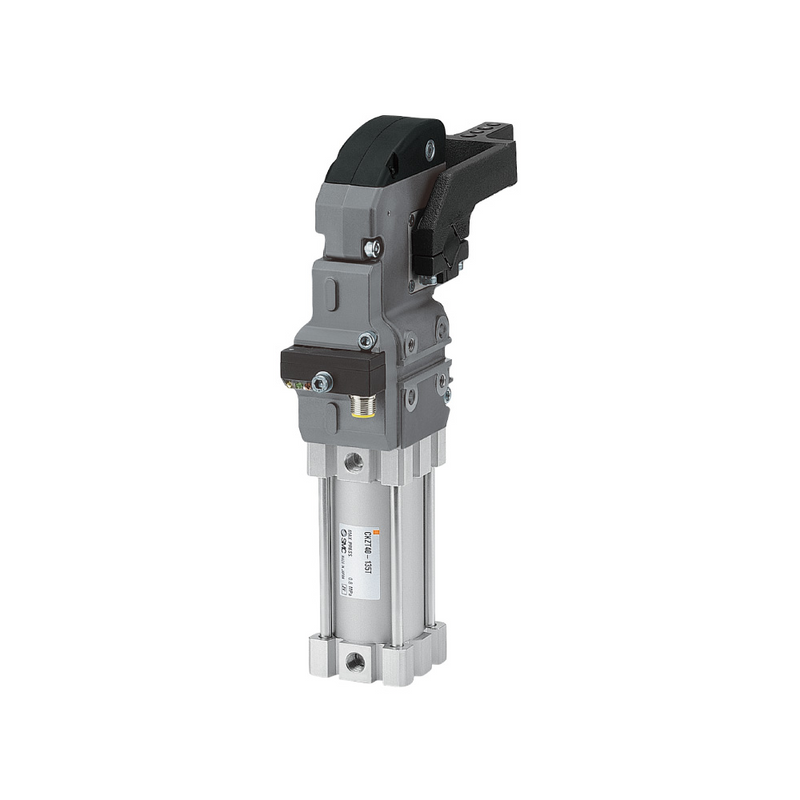

SMC CKZT25105SX2798R (CKZT25-105S-X2798R) - Power Clamp Cylinder, 25mm Bore, 105° Arm Opening Angle

SMC CKZT25105SX2798R Power Clamp Cylinder — 25mm bore, 105 degree arm opening angle, compact type with manually operated handle (right side mounting), rubber top cover (UL94 V0 equivalent flame resistant), G port. SMC official decode (smcworld.com WEB Catalog, CKZT Series Power Clamp Cylinder, Compact Type, With Manually Operated Handle, Bore Size: ø25, ø32): Bore Size 25 = 25 mm. Cylinder Port = Nil = G thread. Arm Opening Angle 105 = 105° (the 105 digits are the ARM OPENING ANGLE, not a stroke). Top Cover X2798 = Rubber Cover (Equivalent To UL94 Standard V0: Flame Resistant). Manually Operated Handle Mounting Position R = Right Side Mounting. SMC features: toggle mechanism with lock function; lightweight 580 g (ø25, rubber cover); compact width 34 mm, height 192.4 mm (ø25, 90° arm opening, rubber cover); clamping force 1100 N (ø32, arm length 50 mm, 0.5 MPa); spatter-proof construction; proximity switch usable in welding magnetic fields. Related SMC part: CKZ25-53B781EL-R (Rubber Cover). Cover-suffix family per SMC series title: base type rubber -X2797 / metal -X3064; with manually operated handle rubber -X2798□ / metal -X3174□; handle with lock -X3232□ / -X3229□, where □ = R (right) or L (left) handle position.

MPN: CKZT25-105S-X2798R · SKU: CKZT25105SX2798R

CKZT25-105S-X2798R Applications

This CKZT compact power clamp cylinder adds a manually operated handle on the right side, letting an operator release or set the clamp arm by hand during jig setup, teach mode or after an air failure - valuable on automotive body-in-white welding jigs where a stuck clamp would otherwise trap the panel. The toggle mechanism mechanically locks the clamped position, and the X2798 flame-resistant rubber cover plus spatter-proof body protect the mechanism inside spot-welding cells.

CKZT25-105S-X2798R Specifications
