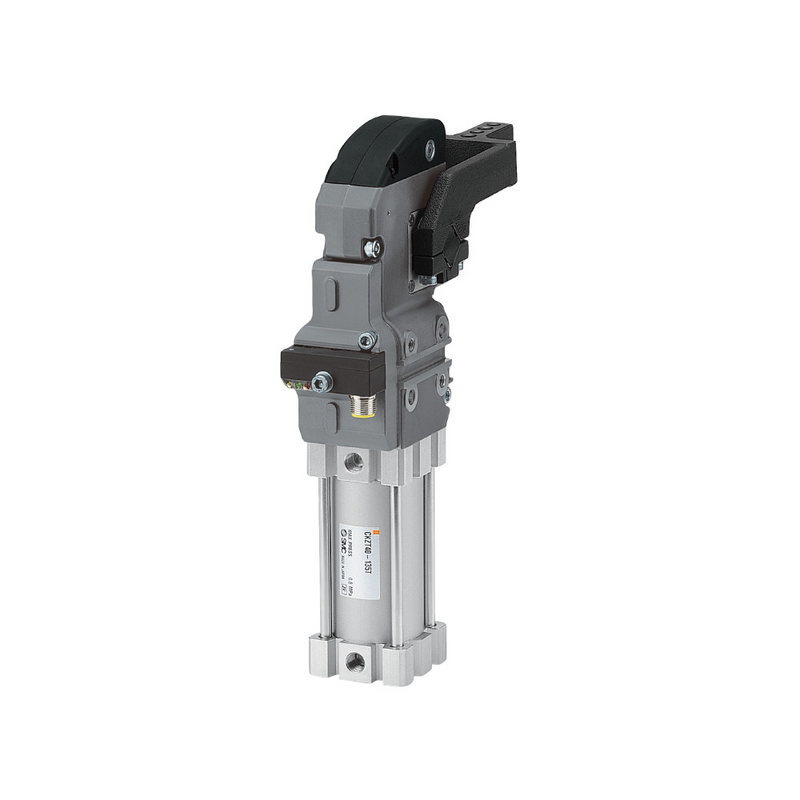

SMC CKZT25105SX2797 (CKZT25-105S-X2797) - Power Clamp Cylinder, 25mm Bore, 105° Arm Opening Angle

SMC CKZT25105SX2797 Power Clamp Cylinder — 25mm bore, 105 degree arm opening angle, compact base type (no manual handle), rubber top cover (UL94 V0 equivalent flame resistant), G port. SMC official decode (smcworld.com WEB Catalog, CKZT Series Power Clamp Cylinder, Compact Type, Base Type, Bore Size: ø25, ø32): Bore Size 25 = 25 mm. Cylinder Port = Nil = G thread. Arm Opening Angle 105 = 105° (note: the 105 digits are the ARM OPENING ANGLE, not a stroke - CKZT clamp cylinders are toggle-type clamps rated by arm opening angle). Top Cover X2797 = Rubber Cover (Equivalent To UL94 Standard V0: Flame Resistant). SMC features: toggle mechanism with lock function; lightweight 580 g (ø25, rubber cover); compact width 34 mm, height 192.4 mm (ø25, 90° arm opening, rubber cover); clamping force 1100 N (ø32, arm length 50 mm, 0.5 MPa); spatter-proof construction; proximity switch usable in welding magnetic fields; selectable rubber or metal cover. Related SMC part: CKZ25-53B781EL-R (Rubber Cover). Cover-suffix family per SMC series title: base type rubber cover -X2797 / metal cover -X3064; with manually operated handle -X2798□ (rubber) / -X3174□ (metal); handle with lock -X3232□ / -X3229□.

MPN: CKZT25-105S-X2797 · SKU: CKZT25105SX2797

CKZT25-105S-X2797 Applications

The CKZT compact power clamp cylinder is the workhorse clamp of automotive body-in-white welding lines, holding sheet-metal panels in jigs while robots spot weld. Its toggle mechanism gives a mechanical lock that holds the workpiece even if air pressure is lost. The X2797 rubber top cover is flame resistant (UL94 V0 equivalent) and protects the head against weld spatter, while the spatter-proof body and welding-field-tolerant proximity switches suit harsh weld cells. This is the base type, without a manual override handle.

CKZT25-105S-X2797 Specifications
