SMC CDRB2BW20270SZ (CDRB2BW20-270SZ) - Vane Rotary Actuator, Size 20, 270° Rotation

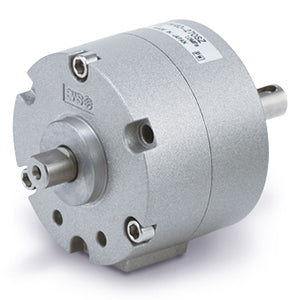

SMC CDRB2BW20270SZ Vane Rotary Actuator — Size 20, 270° rotation. SMC CDRB2BW20-270SZ is a CRB2 series vane-type rotary actuator, size 20, with a 270° rotating angle and single vane construction. The D prefix denotes a built-in magnet for auto switch mounting; B is basic (direct) mounting and W is a double shaft with single flat (sizes 10 to 30). Supplied side ported with no angle adjuster and without auto switches (auto switch mounting position is freely adjustable, 2 pcs. or none). Z is the CRB2-Z series symbol. The CRB2 series offers low-pressure operation from 0.15 MPa for sizes 15 to 40, selectable side or axial port position, and freely adjustable rotation angle. Standard (non made-to-order) product.

MPN: CDRB2BW20-270SZ · SKU: CDRB2BW20270SZ

CDRB2BW20-270SZ Applications

The CDRB2BW20-270SZ delivers a wide 270° swing from a compact direct-mount body, making it well suited to rotary transfer, diverting, turning and sorting stations that need more than a half turn. The double shaft with single flat allows a load on one end and a cam or sensor flag on the other, while the built-in magnet permits auto switches to be clamped anywhere around the housing for position feedback. An optional angle adjuster and low-pressure operation help tune stroke ends and handle fragile parts.
