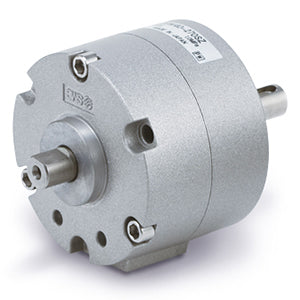

SMC CDRB2BW20180SZ (CDRB2BW20-180SZ) - Vane Rotary Actuator, Size 20, 180° Rotation

SMC CDRB2BW20180SZ Vane Rotary Actuator — Size 20, 180° rotation. SMC CDRB2BW20-180SZ is a CRB2 series vane-type rotary actuator, size 20, with a 180° rotating angle and single vane construction. The D prefix denotes a built-in magnet for auto switch mounting; B is basic (direct) mounting and W is a double shaft with single flat (sizes 10 to 30). Supplied side ported with no angle adjuster and without auto switches (auto switch mounting position is freely adjustable, 2 pcs. or none). Z is the CRB2-Z series symbol. The CRB2 series offers low-pressure operation from 0.15 MPa for sizes 15 to 40, selectable side or axial port position, and freely adjustable rotation angle. Standard (non made-to-order) product.

MPN: CDRB2BW20-180SZ · SKU: CDRB2BW20180SZ

CDRB2BW20-180SZ Applications

The CDRB2BW20-180SZ suits compact indexing, flipping, clamping and part-orienting duties on assembly and packaging machinery where a 180° swing is needed in a very shallow envelope. Its direct-mount body bolts straight to a plate, the double shaft with single flat drives loads or feedback from either end, and the built-in magnet lets auto switches be positioned anywhere around the body for end-of-rotation confirmation. Low-pressure operation and an adjustable stop angle make it useful for gentle handling of delicate workpieces.
