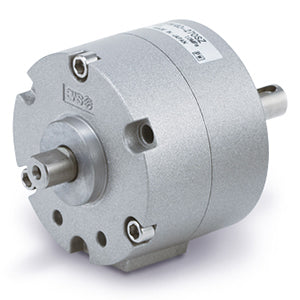

SMC CDRB2BW1090SZ (CDRB2BW10-90SZ) - Vane Rotary Actuator, Size 10, 90° Rotation

SMC CDRB2BW1090SZ Vane Rotary Actuator — Size 10, 90 degree rotation. SMC CRB2 Series vane type rotary actuator (CRB2-Z standard type) with built-in magnet for auto switch mounting. Part number fields confirmed on the SMC WEB Catalog: D = with auto switch (built-in magnet), B = basic mounting style, W = double shaft with single flat (sizes 10 to 30), size 10, 90 degree rotating angle, S = single vane, side ported (no symbol), Z = CRB2-Z series symbol; no angle adjuster fitted. Operating fluid air (non-lube). Proof pressure 1.5 MPa, maximum operating pressure 1.0 MPa, minimum operating pressure 0.15 MPa. Ambient and fluid temperature 5 to 60 C. Ball bearing support. Port size M3 x 0.5 (side ports, size 10). Rotation tolerance for the 90 degree single vane size 10 model is +4/0 degrees. Auto switch mountable (side ports only), mounting position freely adjustable.

MPN: CDRB2BW10-90SZ · SKU: CDRB2BW1090SZ

CDRB2BW10-90SZ Applications

The CRB2 vane rotary actuator converts air pressure directly into oscillating rotary motion, avoiding the racks, pinions and linkages needed with linear cylinders. This size 10 single-vane model swings 90 degrees and is used for flipping, turning and diverting small parts, opening and closing gates and chutes, rotating nozzles or grippers, and driving index and escapement mechanisms. The double shaft with single flat allows tooling on both ends, and the built-in magnet enables auto switches for angle-end confirmation.

CDRB2BW10-90SZ Specifications
