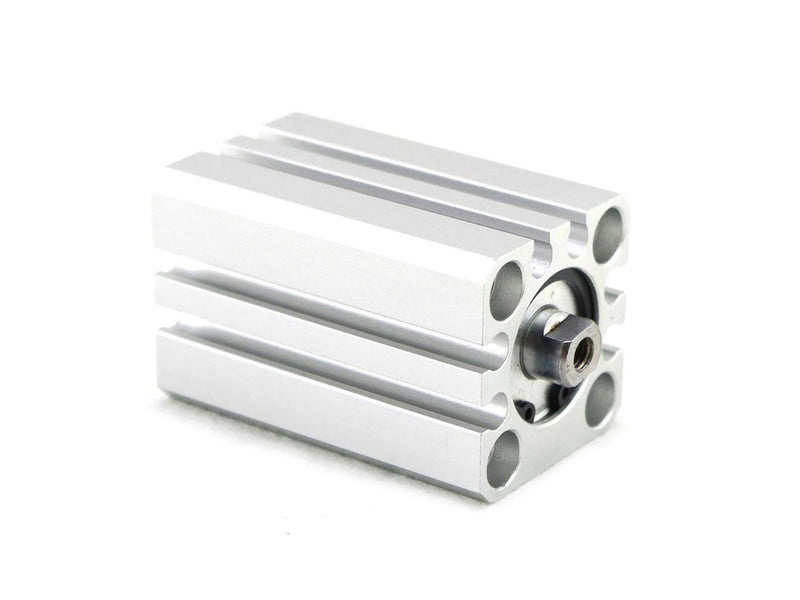

SMC CDQSB1220DM (CDQSB12-20DM) - Compact Cylinder, 12mm Bore, 20mm Stroke

SMC CDQSB1220DM Compact Cylinder — ø12mm bore, 20mm stroke, basic mount, rod end male thread, with built-in magnet. SMC CDQSB12-20DM CQS series square compact cylinder, double acting single rod. Bore 12 mm, stroke 20 mm, basic (B) mounting, built-in magnet (D) for auto switch, rod end male thread (M).

MPN: CDQSB12-20DM · SKU: CDQSB1220DM

CDQSB12-20DM Applications

The CDQSB12-20DM is a CQS series square-body compact air cylinder with a 12 mm bore and 20 mm stroke. The compact square shape allows auto switches to be mounted on multiple sides without protruding, and the built-in magnet gives end-of-stroke sensing. With basic mounting and a male-threaded rod end, it suits tight-space positioning and small-part actuation in automated equipment.

CDQSB12-20DM Specifications
