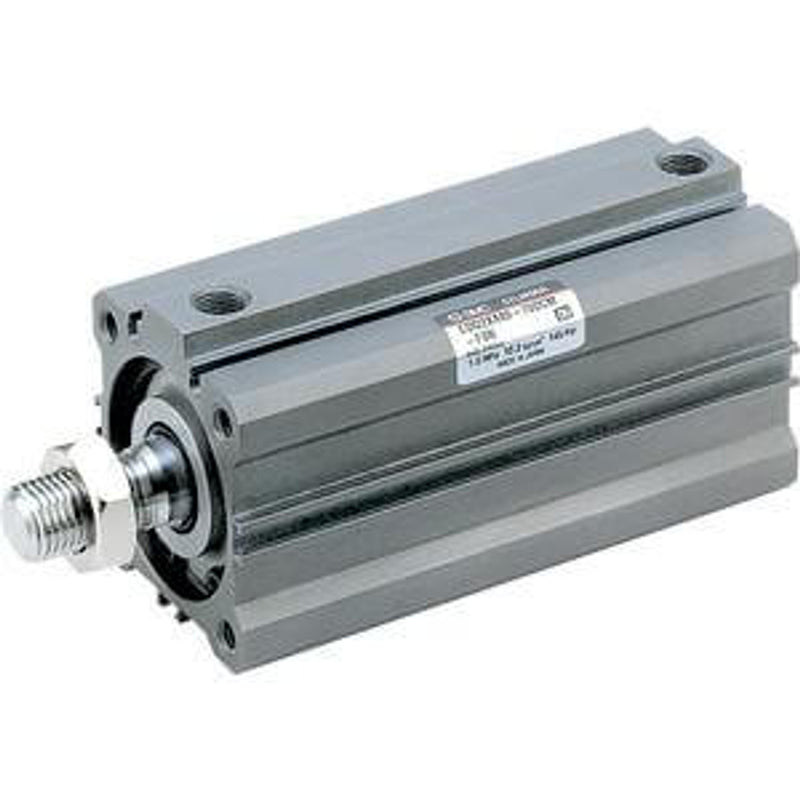

SMC CDQ2B50100DMZ (CDQ2B50-100DMZ) - Compact Air Cylinder, 50 mm Bore, 100 mm Stroke

SMC CDQ2B50100DMZ Compact Air Cylinder — 50 mm bore, 100 mm stroke, Rc1/4 port thread (blank port code), body option M = rod end MALE thread. SMC CDQ2B50-100DMZ is a CQ2 series compact air cylinder with a 50 mm bore and 100 mm stroke. Double acting, single rod, with a built-in magnet (D) for auto switch position sensing on 4 surfaces via the Z mounting groove. Through-hole (B) body mounting. Blank port thread code = Rc, giving Rc1/4 ports at this bore. Body option M: rod end male thread (in place of the standard female thread); a rod end nut is supplied for the male-thread configuration. Fluid: air. Proof pressure 1.5 MPa, maximum operating pressure 1.0 MPa. Piston speed 50 to 500 mm/s. Non-lube operation. Ambient and fluid temperature -10 to 60 C with auto switch magnet. Allowable kinetic energy 0.46 J.

MPN: CDQ2B50-100DMZ · SKU: CDQ2B50100DMZ

CDQ2B50-100DMZ Applications

The largest configuration in this batch: 50 mm bore with the maximum standard 100 mm stroke, specified with the M rod end male thread so it can accept rod end nuts, clevises, knuckle joints and floating joints directly. Suited to long-travel, higher-force duties in a compact envelope - press and clamp assemblies, heavy gate and diverter actuation, lifting and tipping mechanisms, and machine guards. Rc ports match standard tapered-thread pneumatic fittings.
