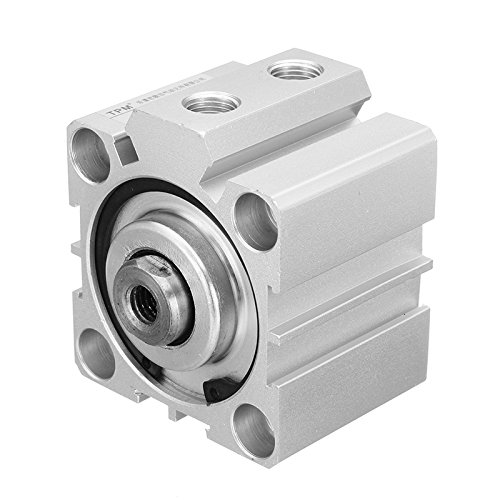

SMC CDQ2B100TF30DZ (CDQ2B100TF-30DZ) - Compact Air Cylinder, 100mm Bore, 30mm Stroke

SMC CDQ2B100TF30DZ Compact Air Cylinder — 100mm bore, 30mm stroke, double acting single rod, through-hole (B) mount, G (BSPP) port, standard rod end female thread, built-in magnet. SMC CDQ2B100TF-30DZ is a CQ2-Z series compact air cylinder with a 100 mm bore and 30 mm stroke. It is double acting, single rod, with a through-hole (B) mounting body and TF port threads, meaning G (BSPP) parallel thread ports (available on bore sizes 32-100 mm). The CDQ2 prefix denotes a built-in magnet for direct mounting of D-M9 series auto switches in the grooves on 4 surfaces. Operates on air at a maximum 1.0 MPa with a 1.5 MPa proof pressure and a minimum operating pressure of 0.05 MPa. Piston speed 50 to 500 mm/s, non-lube operation, ambient and fluid temperature -10 to 60 degC with the auto switch magnet. Supplied without cushion; allowable kinetic energy 2.27 J. Stroke length tolerance +1.0/0 mm.

MPN: CDQ2B100TF-30DZ · SKU: CDQ2B100TF30DZ

CDQ2B100TF-30DZ Applications

Chosen for European and Middle East installations that pipe in G (BSPP) fittings rather than Rc. The 100 mm bore gives high clamping and pressing force from a very short overall length, ideal for fixturing, die closing, lifting and pusher stations where axial space is tight. Through-hole mounting bolts it directly through a machine plate, and the built-in magnet supports D-M9 auto switches for end-of-stroke feedback to a PLC in packaging, automotive and general assembly automation.

CDQ2B100TF-30DZ Specifications
