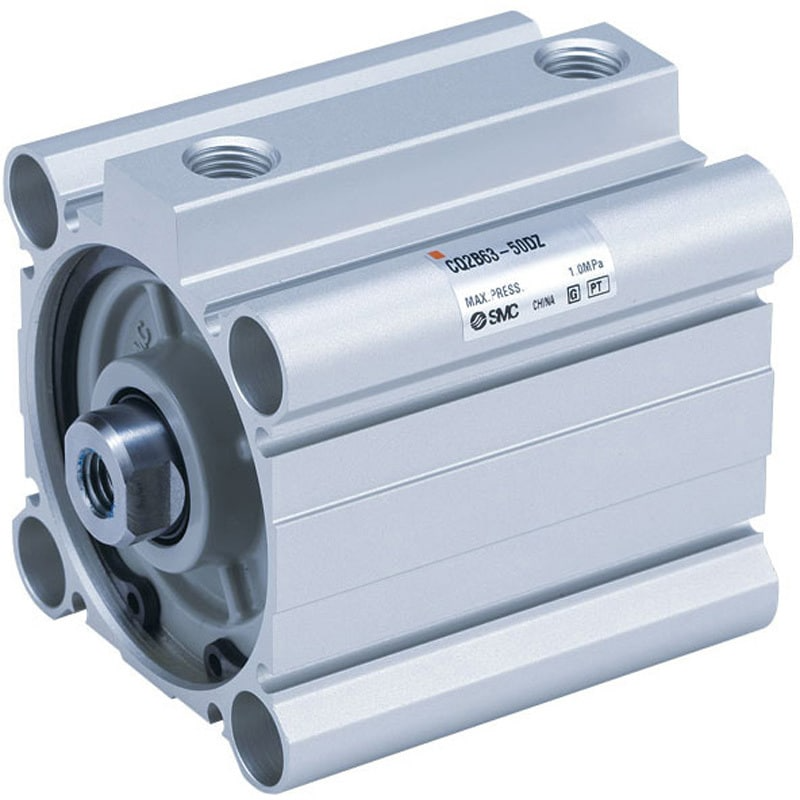

SMC CDQ2A5060DCZ (CDQ2A50-60DCZ) - Compact Air Cylinder, 50mm Bore, 60mm Stroke

SMC CDQ2A5060DCZ Compact Air Cylinder — 50mm bore, 60mm stroke, double acting with rubber bumper (C), Rc port thread, standard rod end female thread, both ends tapped mounting, without auto switch. SMC CDQ2A50-60DCZ is a CQ2-Z series compact air cylinder, standard type, double acting, single rod. Bore size 50 mm, stroke 60 mm. Mounting style A (both ends tapped). Built-in magnet (D) for auto switch detection. Port thread type is Rc (blank code). Body option C adds a rubber bumper for cushioning at stroke ends. Rod end is the standard female thread. Auto switch mounting groove Z allows switch mounting on 4 sides for this bore. Supplied without auto switch.

MPN: CDQ2A50-60DCZ · SKU: CDQ2A5060DCZ

CDQ2A50-60DCZ Applications

The rubber bumper option softens the impact at both stroke ends, reducing noise and mechanical shock on higher-speed or higher-inertia moves, which extends service life in repetitive transfer, pusher and stopper applications. The 50 mm bore with 60 mm stroke gives useful thrust in a very short body, and the standard female rod end accepts SMC rod end nuts, knuckle joints and floating joints. Built-in magnet allows D-M9 series auto switches to be fitted separately.

CDQ2A50-60DCZ Specifications
