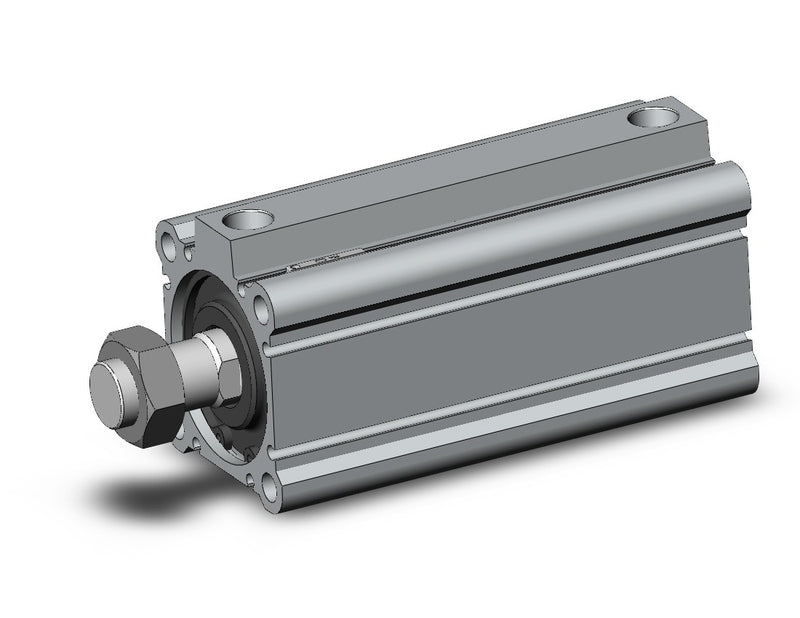

SMC CDQ2A50100DMZM9B (CDQ2A50-100DMZ-M9B) - Compact Air Cylinder, 50mm Bore, 100mm Stroke

SMC CDQ2A50100DMZM9B Compact Air Cylinder — 50mm bore, 100mm stroke, double acting single rod, Rc port thread, rod end male thread, both ends tapped mounting, supplied with D-M9B solid state auto switches (2 pcs.). SMC CDQ2A50-100DMZ-M9B is a CQ2-Z series compact air cylinder, standard type, double acting, single rod. Bore size 50 mm, standard stroke 100 mm. Mounting style A (both ends tapped). Built-in magnet (D) for auto switch detection. Port thread type is Rc (blank code). Body option M provides a rod end male thread. Auto switch mounting groove Z allows switch mounting on 4 sides for this bore. Supplied with the D-M9B auto switch: solid state, grommet, with indicator light, 2-wire, in-line entry, 0.5 m lead wire, DC24V (DC10 to 28V) applied voltage, 2 pcs. as standard.

MPN: CDQ2A50-100DMZ-M9B · SKU: CDQ2A50100DMZM9B

CDQ2A50-100DMZ-M9B Applications

Used where a full-size cylinder will not fit but a genuine 50 mm bore thrust is still required, such as clamping, indexing and pressing stations on assembly and packaging machinery. The built-in magnet plus the two supplied D-M9B solid state switches give ready-to-wire end-of-stroke position feedback to a PLC, so no separate sensors need to be ordered. The rod end male thread suits direct coupling to rod clevises, knuckle joints and floating joints.
