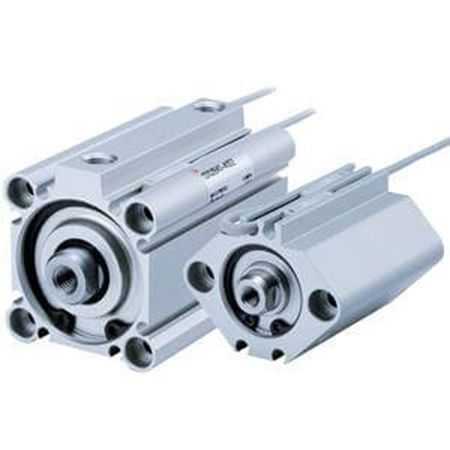

SMC CDQ2A1210DMZ (CDQ2A12-10DMZ) - Compact Cylinder, 12mm Bore, 10mm Stroke

SMC CDQ2A1210DMZ Compact Cylinder — ø12mm bore, 10mm stroke, both-ends-tapped mount, rod end male thread, with built-in magnet. SMC CDQ2A12-10DMZ CQ2-Z series compact cylinder, double acting single rod. Bore 12 mm, stroke 10 mm, both ends tapped (A) mounting, built-in magnet (D) for auto switch, rod end male thread (M), Rc/M port thread.

MPN: CDQ2A12-10DMZ · SKU: CDQ2A1210DMZ

CDQ2A12-10DMZ Applications

The CDQ2A12-10DMZ is a space-saving CQ2-Z series compact air cylinder with a 12 mm bore and short 10 mm stroke. Its double-acting single-rod design carries a built-in magnet for auto-switch position sensing, a both-ends-tapped body and a male-threaded rod end for direct load attachment. It suits confined-space clamping, positioning and small part handling in automated assembly machinery.

CDQ2A12-10DMZ Specifications
