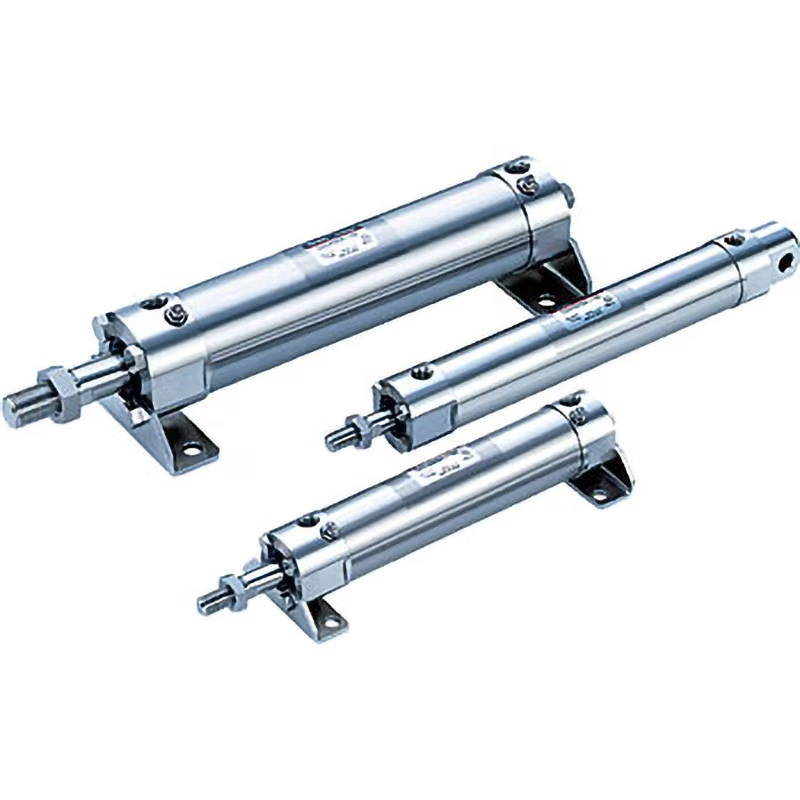

SMC CDG5BN50TFSV120 (CDG5BN50TFSV-120) - Stainless Steel Round Body Air Cylinder, 50mm Bore, 120mm Stroke

SMC CDG5BN50TFSV120 Stainless Steel Round Body Air Cylinder — 50 mm bore, 120 mm stroke, basic mount, rubber bumper, built-in magnet, TF (G/BSPP) port thread, FKM (V) seals. SMC CDG5BN50TFSV-120 is a CG5-S Series all-stainless-steel round-body air cylinder, double acting, single rod. Segmentation per the SMC official How to Order: C(D)G5 = series, D = with auto switch (built-in magnet), B = basic mounting style, N = non-lube / rubber bumper type, 50 = 50 mm bore, TF = port thread type - on bore 32 to 100 TF is a G (BSPP / ISO 228 parallel) thread, S = stainless steel cylinder identifier (fixed literal), V = seal material FKM (fluororubber; alternative R = NBR), -120 = 120 mm cylinder stroke. Confirmed specifications (SMC catalog): proof pressure 1.5 MPa; maximum operating pressure 1.0 MPa; minimum operating pressure 0.05 MPa; ambient and fluid temperature -10 to 70 degC without auto switch, -10 to 60 degC with auto switch; cushion rubber bumper; lubrication not required (non-lube); piston speed 50 to 1000 mm/s (rubber bumper). External metal parts are stainless steel 304 for water-splash environments. STROKE NOTE: 120 mm is NOT in the SMC standard stroke list for bore 50 (standard: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm); SMC states intermediate strokes are manufacturable in 1 mm increments (no spacers used) up to a maximum of 1500 mm, so a 120 mm stroke is a valid made-to-order intermediate length. Auto switches: band-mounting D-G5BA water-resistant type only. Mounting styles in the series: basic (B), axial foot (L), rod flange (F), head flange (G), clevis integrated (E).

MPN: CDG5BN50TFSV-120 · SKU: CDG5BN50TFSV120

CDG5BN50TFSV-120 Applications

This 50 mm bore stainless cylinder delivers roughly four times the thrust of a 25 mm unit while keeping full washdown resistance, so it suits heavier pushing, lifting, pressing and gate duties on food, beverage, dairy and chemical processing lines. Stainless steel 304 externals plus FKM seals handle caustic cleaning agents and splashing water. The 120 mm intermediate stroke is produced to order in 1 mm increments; G (BSPP) ports simplify European fitting sourcing, and the built-in magnet supports water-resistant band-mount auto switches.
