SMC CD85N1690CB (CD85N16-90C-B) - Mini Air Cylinder, 16 mm Bore, 90 mm Stroke

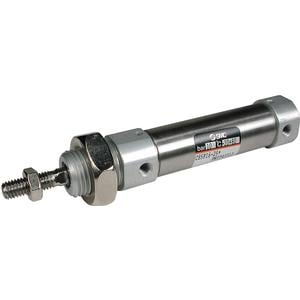

SMC CD85N1690CB Mini Air Cylinder — 16 mm bore, 90 mm intermediate stroke, air cushion (C), band-mounting auto switch style (B). SMC C(D)85 series ISO 6432 mini air cylinder, double acting, single rod, with built-in magnet (D) for auto switch use. Basic 'N' mounting (integral clevis) head cover. Bore 16 mm, stroke 90 mm, piston rod diameter 6 mm, rod end thread M6 x 1, port size M5 x 0.8. 90 mm is an intermediate (non-catalogue) stroke length; SMC's C85 how-to-order states that other strokes are available on request, within the 400 mm maximum stroke for the 16 mm bore. Air cushion at both ends ('C' suffix; air cushion is available only with the N mounting style, bores 10 to 25). Auto switch mounting style B = band mounting; auto switches and bands are ordered separately. Proof pressure 1.5 MPa, maximum operating pressure 1.0 MPa, piston speed 50 to 1500 mm/s, ambient and fluid temperature -20 to 80 C (-10 to 60 C with built-in magnet). Allowable kinetic energy 0.4 J with air cushion. Not requiring lubrication. Conforms to ISO 6432 and CETOP RP52P. Weight approximately 174 g per SMC's formula (109 g basic + 7.2 g per 10 mm of stroke).

MPN: CD85N16-90C-B · SKU: CD85N1690CB

CD85N16-90C-B Applications

Specified when a machine needs exactly 90 mm of travel rather than a catalogue 80 or 100 mm stroke, avoiding mechanical stops or spacers in the linkage. The 16 mm ISO 6432 body suits pushers, lift stations, gates and feeders in packaging, assembly and handling equipment. Air cushions decelerate the piston at each end for quiet, low-shock operation at high cycle rates, and the built-in magnet allows band-mounted auto switches for position feedback.
