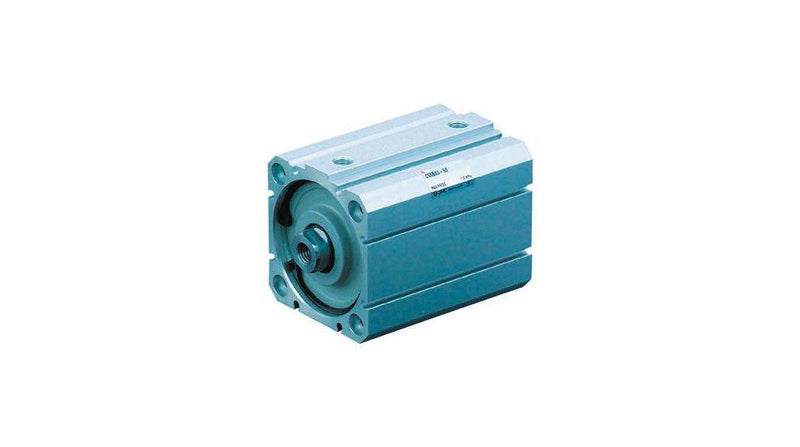

SMC CD55B3250M (CD55B32-50M) - Compact Air Cylinder, 32mm Bore, 50mm Stroke

SMC CD55B3250M Compact Air Cylinder — 32mm bore, 50mm stroke, male rod-end thread. SMC CD55B32-50M ISO 21287 compact air cylinder, C55 series. Double-acting, single rod, 32 mm bore, 50 mm stroke with male (M) rod-end thread. Auto-switch mountable on four surfaces. Rubber bumper on both ends. Max. operating pressure 1.0 MPa, min. 0.05 MPa, proof pressure 1.5 MPa. Ambient/fluid temperature -10 to 70 C (-10 to 60 C with auto switch). Piston speed 50 to 500 mm/s. G1/8 port.

MPN: CD55B32-50M · SKU: CD55B3250M

CD55B32-50M Applications

A 32 mm bore with a 50 mm stroke and male rod-end thread for ISO-standard automation such as clamping, transfer, stopping and positioning on assembly and packaging lines. The male thread mates directly with rod-end nuts, couplers and floating joints, and four-surface auto-switch mounting gives flexible end-of-stroke feedback.

CD55B32-50M Specifications
