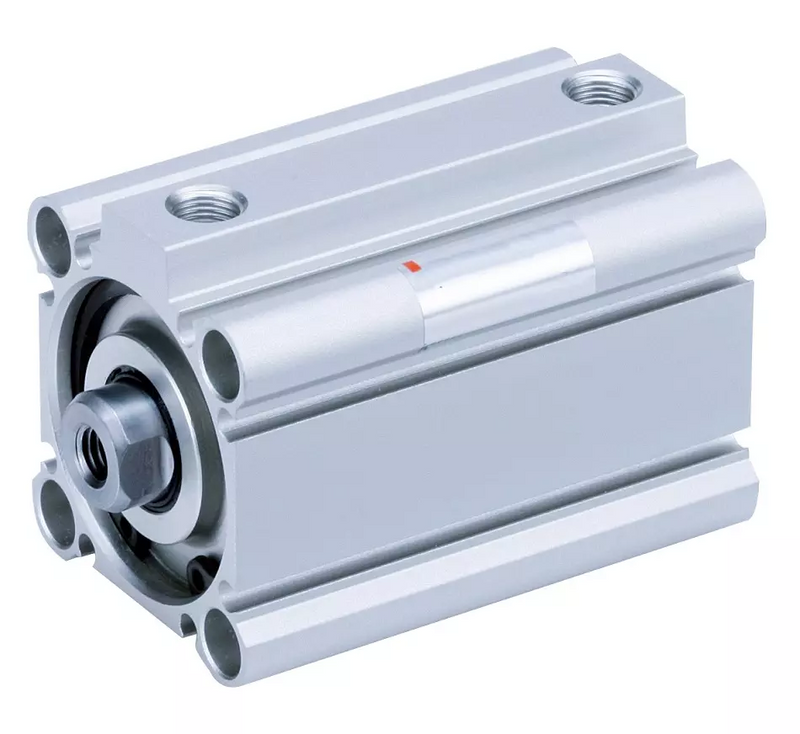

SMC CD55B3210M (CD55B32-10M) - Compact Air Cylinder, 32mm Bore, 10mm Stroke

SMC CD55B3210M Compact Air Cylinder — 32mm bore, 10mm stroke, male rod-end thread. SMC CD55B32-10M ISO 21287 compact air cylinder, C55 series. Double-acting, single rod, 32 mm bore, 10 mm stroke with male (M) rod-end thread. Auto-switch mountable on four surfaces. Rubber bumper on both ends. Max. operating pressure 1.0 MPa, min. 0.05 MPa, proof pressure 1.5 MPa. Ambient/fluid temperature -10 to 70 C (-10 to 60 C with auto switch). Piston speed 50 to 500 mm/s. G1/8 port.

MPN: CD55B32-10M · SKU: CD55B3210M

CD55B32-10M Applications

A short 10 mm stroke, 32 mm bore actuator with male rod-end thread for ISO-standard automation needing high force over a very short travel, such as clamping, pressing and stopping. The compact stroke keeps envelope small while the male thread allows direct fastening, and auto switches can be mounted on any of four surfaces for stroke-end sensing.

CD55B32-10M Specifications
