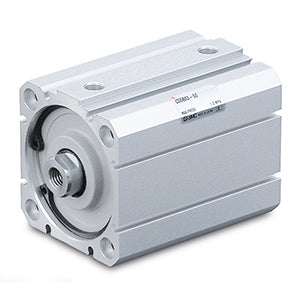

SMC CD55B2080 (CD55B20-80) - Compact Air Cylinder, 20mm Bore, 80mm Stroke
SMC CD55B2080 Compact Air Cylinder — 20mm bore, 80mm stroke, female rod end. SMC CD55B20-80 ISO 21287 compact air cylinder, C55 series. Double acting, single rod, 20mm bore, 80mm stroke. Auto-switch mountable (built-in magnet), female rod end thread. Rubber bumper cushion both ends. Max operating pressure 1.0 MPa, min 0.05 MPa, proof pressure 1.5 MPa. Piston speed 50 to 500 mm/s. G1/8 port. Ambient/fluid temperature -10 to 60 C.
MPN: CD55B20-80 · SKU: CD55B2080
CD55B20-80 Applications
The CD55B20-80 is an ISO 21287 compact air cylinder offering a longer 80mm stroke in a slim body. Suited to automation tasks needing extended reach such as pushing, ejecting, and part transfer, with four-side auto-switch mounting for end-of-stroke sensing on packaging, assembly, and handling systems.
CD55B20-80 Specifications
| Brand | SMC | Manufacturer Part No. | CD55B20-80 |
| Bore | 20 mm | Stroke | 80 mm |
| Series | C55 | Standard | ISO 21287 |
| Action | Double acting, single rod | Rod End | Female thread |
| Auto Switch | Mountable (built-in magnet) | Cushion | Rubber bumper both ends |
| Max Operating Pressure | 1.0 MPa | Min Operating Pressure | 0.05 MPa |
| Proof Pressure | 1.5 MPa | Piston Speed | 50 to 500 mm/s |
| Port Size | G1/8 | Ambient/Fluid Temperature | -10 to 60 C (with auto switch) |
| Fluid | Air |
