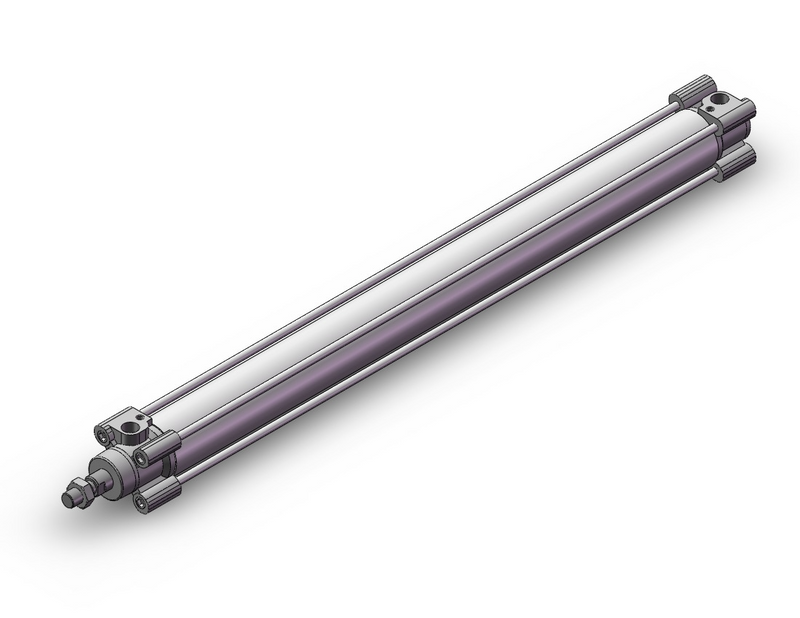

SMC C96SDB40500C (C96SDB40-500C) - ISO Air Cylinder, 40mm Bore, 500mm Stroke

SMC C96SDB40500C ISO Air Cylinder — 40mm Bore, 500mm Stroke. SMC C96SDB40-500C is an ISO 15552 profile pneumatic air cylinder from the C96 series. Double-acting, single rod with built-in magnet for auto switch mounting, 40mm bore and 500mm stroke. Includes air cushion and bumper cushion (C option). Operating medium: compressed air.

MPN: C96SDB40-500C · SKU: C96SDB40500C

C96SDB40-500C Applications

Chosen for automation requiring long travel with position sensing, such as long-stroke transfer, ejection, and conveying stations. The magnet-equipped 40mm bore accepts auto switches for end-of-stroke detection, and the extended 500mm stroke covers wide travel spans. Air and bumper cushioning absorbs end-of-stroke energy to protect the cylinder and reduce noise during high-cycle ISO 15552 operation.

C96SDB40-500C Specifications
