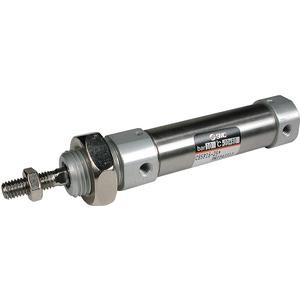

SMC C85N2025C (C85N20-25C) - Mini Air Cylinder, 20mm Bore, 25mm Stroke

SMC C85N2025C Mini Air Cylinder — 20mm Bore, 25mm Stroke, Air Cushion (Double-Acting). SMC C85N20-25C ISO 6432 round-body Mini Air Cylinder. 20 mm bore, 25 mm stroke, double-acting single rod with air cushion (C). Fluid: air. Proof pressure 1.5 MPa, max. operating pressure 1.0 MPa. Ambient and fluid temperature -20 to 80 C. Piston speed 50 to 1500 mm/s. Port size G 1/8. Piston rod thread M8 x 1.25. Conforms to ISO 6432 / CETOP RP52P.

MPN: C85N20-25C · SKU: C85N2025C

C85N20-25C Applications

Used for short-stroke linear actuation in automation and packaging equipment requiring an ISO 6432 round-body cylinder. The 20 mm bore with 25 mm stroke and air cushion delivers smooth end-of-stroke deceleration, reducing impact and noise on stoppers, clamps, and lifting mechanisms operating at higher cycle rates.

C85N20-25C Specifications
