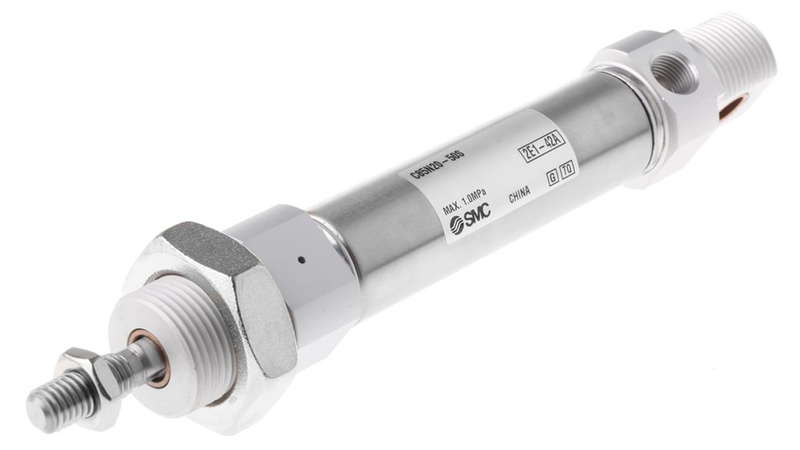

SMC C85N2025 (C85N20-25) - Mini Air Cylinder, 20mm Bore, 25mm Stroke

SMC C85N2025 Mini Air Cylinder — 20mm Bore, 25mm Stroke, Double-Acting (Rubber Bumper). SMC C85N20-25 ISO 6432 round-body Mini Air Cylinder. 20 mm bore, 25 mm stroke, double-acting single rod with standard rubber bumper. Fluid: air. Proof pressure 1.5 MPa, max. operating pressure 1.0 MPa. Ambient and fluid temperature -20 to 80 C. Piston speed 50 to 1500 mm/s. Port size G 1/8. Piston rod thread M8 x 1.25. Conforms to ISO 6432 / CETOP RP52P.

MPN: C85N20-25 · SKU: C85N2025

C85N20-25 Applications

Used for short-stroke linear actuation in automation, packaging, and assembly machinery requiring an ISO 6432 round-body cylinder. The 20 mm bore with 25 mm stroke and double-acting operation suits clamping, pushing, and positioning tasks where powered motion in both directions is needed in a compact envelope.

C85N20-25 Specifications
