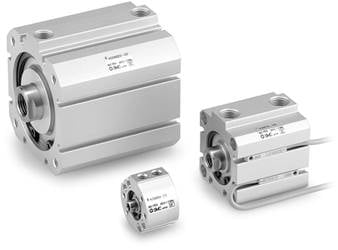

SMC C55B3210M (C55B32-10M) - Compact Cylinder, 32mm Bore, 10mm Stroke

SMC C55B3210M Compact Cylinder — ISO 21287 compact cylinder, 32mm bore, 10mm stroke, rod end male thread. ISO 21287 compact cylinder, double acting, single rod. Bore 32 mm, stroke 10 mm. M suffix = rod end male thread. Mounting style B (through-hole/both ends tapped common). Fluid: air. Proof pressure 1.5 MPa. Max operating pressure 1.0 MPa. Min operating pressure 0.05 MPa. Ambient and fluid temperature -10 to 70 C without auto switch. Port G1/8 (32mm bore). Cushion: rubber bumper on both ends. Non-lube.

MPN: C55B32-10M · SKU: C55B3210M

C55B32-10M Applications

The C55B32-10M is a compact double-acting ISO 21287 cylinder with a 32 mm bore and a 10 mm stroke, configured with a male-threaded rod end for direct attachment of rod eyes, knuckles, or couplers. Its short body fits tight machine spaces, and auto switches can mount on four faces for position feedback. It is used for short-stroke clamping, pushing, and positioning in automated assembly, packaging, and handling systems.

C55B32-10M Specifications
