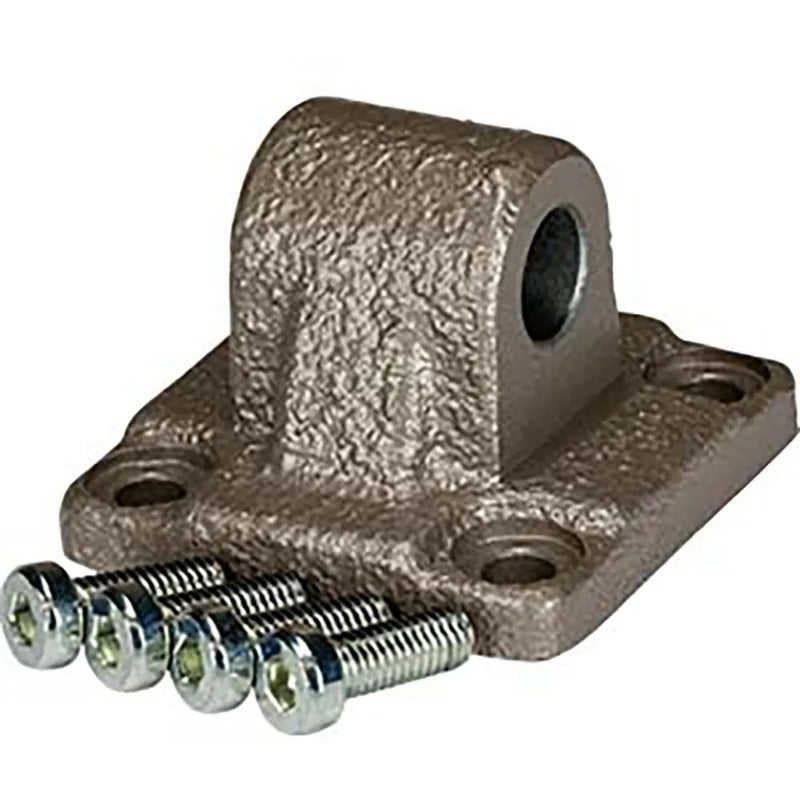

SMC C5080 Single Clevis Mounting Bracket — Single rear clevis mounting bracket for 80mm bore tie-rod cylinder. Single (rear) clevis mounting bracket accessory for SMC C95/C96 series ISO tie-rod air cylinders, 80 mm bore size. Provides a hinged rear pivot mount for the cylinder.
MPN / SKU: C5080
C5080 Applications
The C5080 is a single rear clevis mounting bracket for SMC C95 and C96 ISO tie-rod pneumatic cylinders with an 80 mm bore. It provides a hinged pivot at the cylinder cap end, allowing the cylinder to swing as its rod extends and retracts. This mounting is used where the load moves through an arc rather than in a straight line, such as swinging gates, tilting fixtures, and clamping mechanisms.
C5080 Specifications
| Brand | SMC | Series | C95/C96 |
| Product Type | Single (rear) clevis mounting bracket | For Cylinder Bore | 80 mm |
| Application | ISO tie-rod air cylinder mounting |
