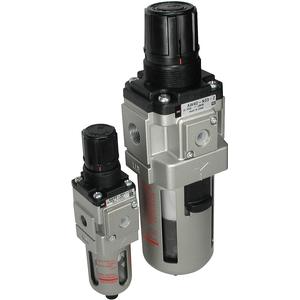

SMC AW40N06ZA (AW40-N06-Z-A) - Modular Filter Regulator, NPT3/4 Port

SMC AW40N06ZA Modular Filter Regulator — NPT3/4 port (AW40-06 large-port body), 5 micron element, psi/F imperial unit spec. Combined modular filter and regulator, AW40-06 large-port body, NPT3/4 port, 5 micrometer nominal filtration, polycarbonate bowl with bowl guard, relieving type regulator, set pressure range 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temperature -5 to 60 C, drain capacity 45 cm3. Weight approx 0.75 kg. Z = name plate and gauge in psi/F imperial units; A = AW-A specification.

MPN: AW40-N06-Z-A · SKU: AW40N06ZA

AW40-N06-Z-A Applications

AW40-06 large-port modular filter regulator with NPT3/4 connections for high-flow air-preparation duties, combining 5 micron filtration and relieving pressure regulation in one unit. The Z option provides imperial psi/F markings for North American use. The larger 3/4 inch porting delivers greater flow than the standard AW40 while keeping the compact modular envelope, making it suitable for presses, large machine tools and high-consumption pneumatic circuits.

AW40-N06-Z-A Specifications
