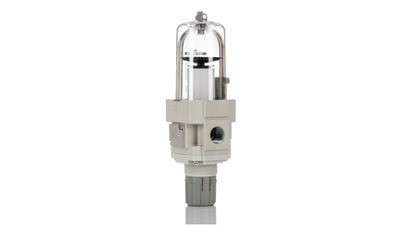

SMC AW40F04B (AW40-F04-B) - Filter Regulator, G1/2 Port

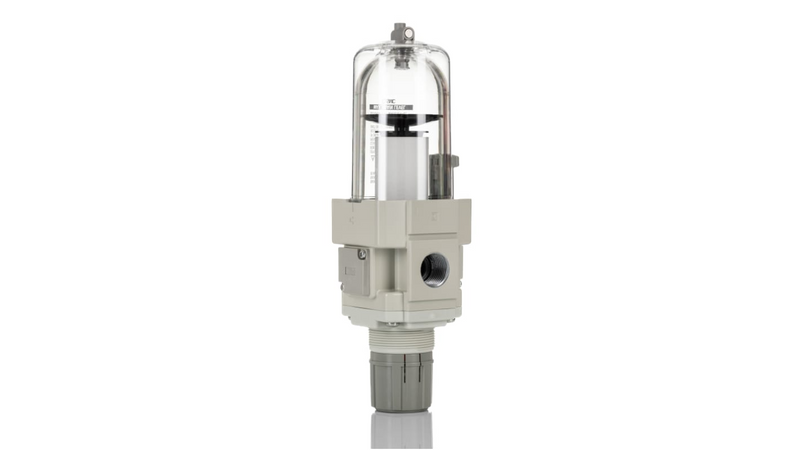

SMC AW40F04B Filter Regulator — G1/2 modular filter regulator with mounting bracket. Modular type filter regulator, body size 40. Port G1/2 (F04). With mounting bracket (B). Fluid: air. Max operating pressure 1.0 MPa. Set pressure range 0.05 to 0.85 MPa. Proof pressure 1.5 MPa. Nominal filtration 5 um. Polycarbonate bowl with bowl guard. Ambient and fluid temperature -5 to 60 C. Relieving type. Drain capacity 45 cm3..

MPN: AW40-F04-B · SKU: AW40F04B

AW40-F04-B Applications

The AW40-F04-B combines an air filter and pressure regulator in one modular body, saving space and piping in compressed air preparation systems. The G1/2 ports suit medium-flow lines, and the included mounting bracket allows panel or frame installation. With 5 micron filtration and a 0.05 to 0.85 MPa set range, it removes particulate and condensate while holding stable downstream pressure for pneumatic tools, valves, and actuators.

AW40-F04-B Specifications
