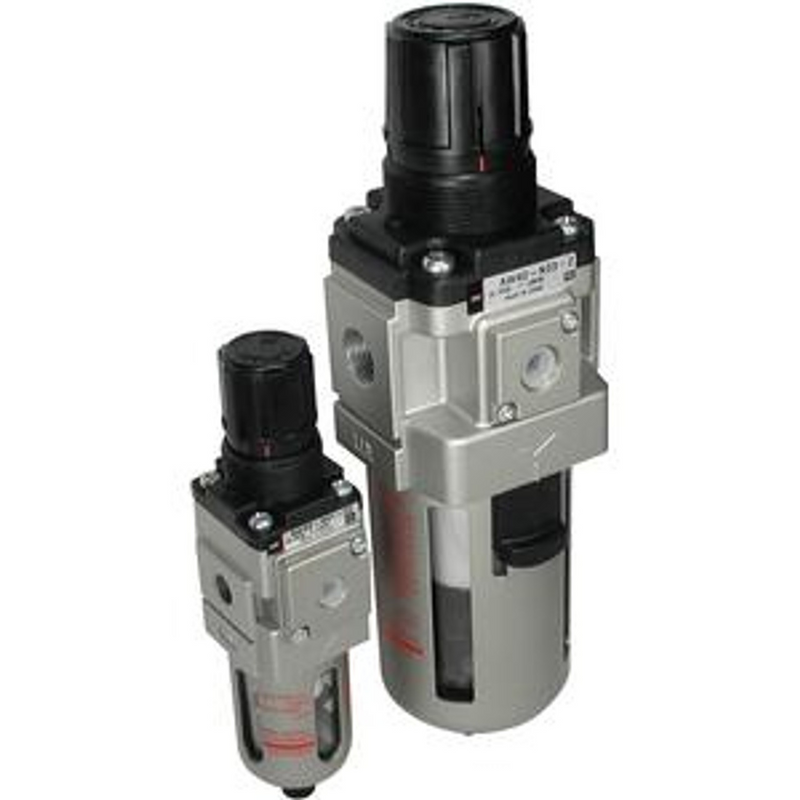

SMC AW4004BG2X440 (AW40-04BG-2-X440) - Modular Filter Regulator, Rc1/2 Port, With Metal Bowl

SMC AW4004BG2X440 Modular Filter Regulator — Rc1/2 Port, Metal Bowl, High Temperature (-5 to 80 C). SMC Series AW modular filter regulator, body size 40, Rc1/2 port, with bracket, round type pressure gauge and metal bowl (2), made-to-order X440 high temperature specification. Rubber parts FKM, ambient/fluid temperature -5 to 80 C. 5 micron nominal filtration, set pressure 0.05 to 0.85 MPa, max operating pressure 1.0 MPa.

MPN: AW40-04BG-2-X440 · SKU: AW4004BG2X440

AW40-04BG-2-X440 Applications

High-temperature (X440) made-to-order variant of the body-size-40 filter-regulator, using FKM seals to extend the ambient and fluid temperature rating to -5 to 80 C. Fitted with Rc1/2 ports, mounting bracket, round gauge and a metal bowl for durability. Intended for hot environments such as ovens, foundries, drying lines and engine test rigs where standard NBR-sealed units would degrade.

AW40-04BG-2-X440 Specifications
