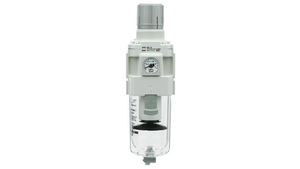

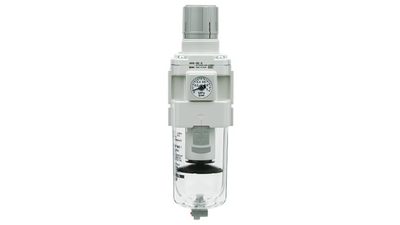

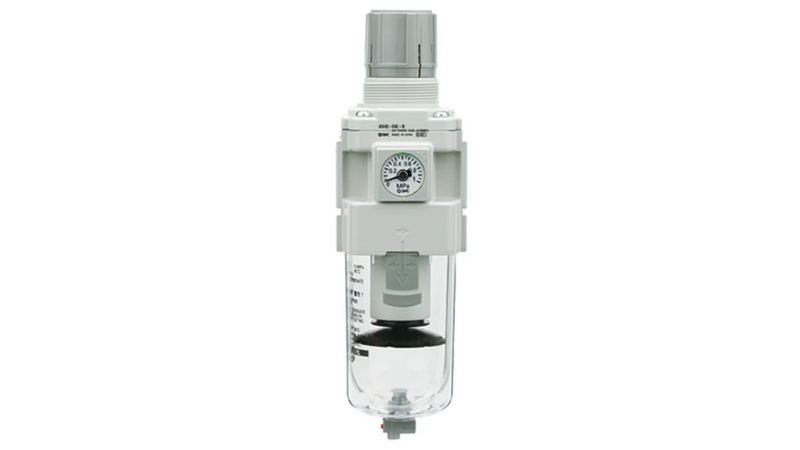

SMC AW30F03DH (AW30-F03-D-H) - Modular Filter Regulator, G3/8 Port, With Auto Drain

SMC AW30F03DH Modular Filter Regulator — G3/8 Port, Auto Drain (N.O.), Set Nut / Panel Mount. SMC Series AW modular filter regulator, body size 30, G3/8 port, with float type auto drain (N.O.) and set nut for panel fitting. Relieving type, 5 micron nominal filtration, polycarbonate bowl with bowl guard. Set pressure 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temp -5 to 60 C.

MPN: AW30-F03-D-H · SKU: AW30F03DH

AW30-F03-D-H Applications

Filter-regulator module with G3/8 ports and a set nut for flush panel mounting, letting the unit be fitted through a control-panel cut-out with the adjustment knob accessible from the front. The normally-open float auto drain clears condensate automatically. Ideal for operator panels and enclosed machine consoles that require clean, regulated air with front-facing adjustment and low-maintenance drainage.

AW30-F03-D-H Specifications
