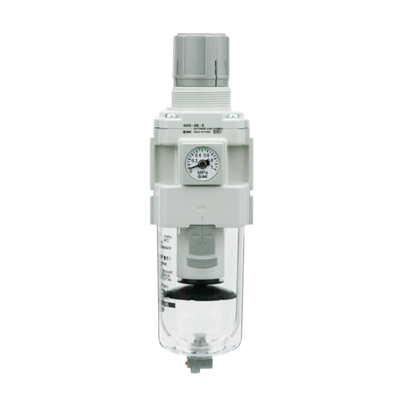

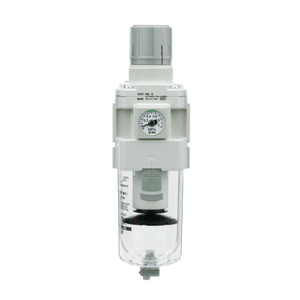

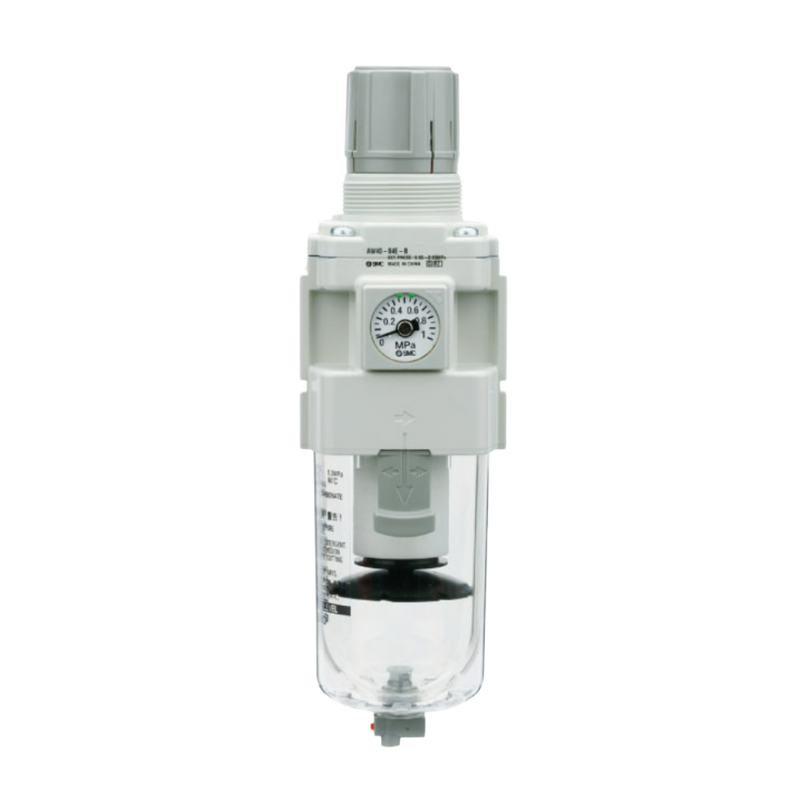

SMC AW30F03DED (AW30-F03DE-D) - Modular Filter Regulator, G 3/8 Port, N.O. Auto Drain
SMC AW30F03DED Modular Filter Regulator — G 3/8 port with N.O. float auto drain and square embedded gauge. Modular type filter regulator with backflow function option, body size 30, G pipe thread, 3/8 port, N.O. float type auto drain, square embedded type pressure gauge with limit indicator, polycarbonate bowl, relieving type exhaust, flow direction left to right.
MPN: AW30-F03DE-D · SKU: AW30F03DED
AW30-F03DE-D Applications
The SMC AW30F03DED is the G 3/8 build with an N.O. float auto drain and a square embedded pressure gauge, distinguishing it from the Rc-threaded and round-gauge members of the range. It is used in air preparation on OEM machinery built to BSPP piping. It is suited to panel-front installations where a flush gauge is wanted, lines that must self-drain whenever pressure is removed, and general filtration and regulation duty. The N.O. drain opens on shutdown, clearing condensate without operator intervention.
AW30-F03DE-D Specifications
| Brand | SMC | Manufacturer Part No. | AW30-F03DE-D |
| Product Type | Modular Filter Regulator | Series | AW20(K)-D~AW60(K)-D |
| SMC Series Description | AW20(K)-D~AW60(K)-D Series Modular Type Filter Regulator (With Backflow Function Option) | Body Size | 30 |
| With Backflow Function | Without Backflow Function | Pipe Thread Type | F - G |
| Port Size | 03 - 3/8 | Bracket | Without Bracket |
| Float Type Auto Drain | D - N.O. (Normally Open) Drain Port Is Open When Pressure Is Not Applied | Digital Pressure Switch | Without Digital Pressure Switch |
| Pressure Gauge/Mounting Option | E - Square Embedded Type Pressure Gauge (With Limit Indicator) | Set Pressure | 0.05 To 0.85 MPa Setting |
| Bowl | Polycarbonate Bowl | Drain Port Option a | With Drain Cock |
| Exhaust Mechanism | Relieving Type | Flow Direction | Flow Direction: Left To Right |
| Made To Order | Standard |
