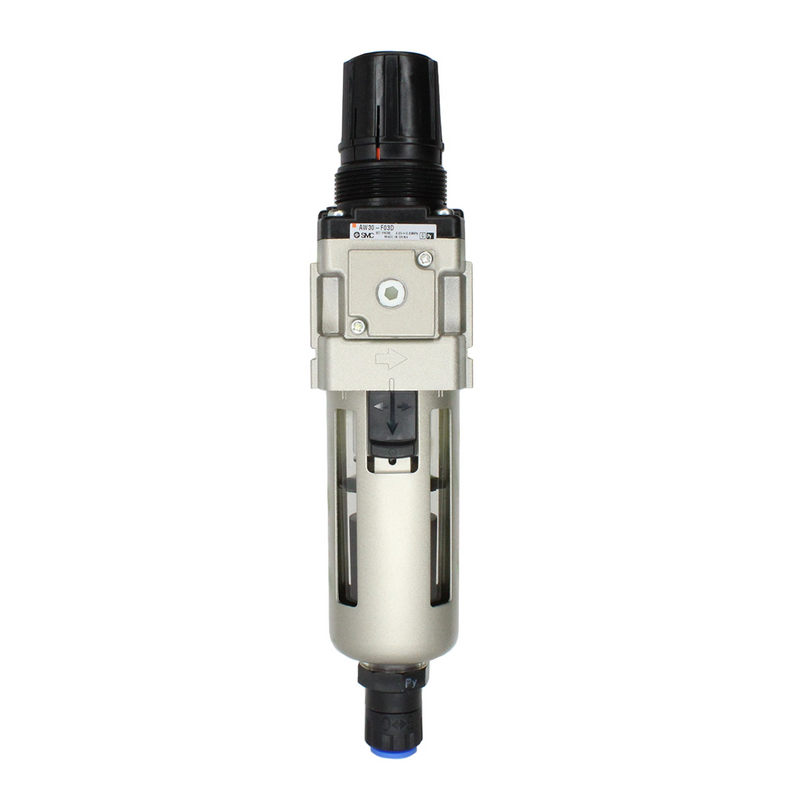

SMC AW30F03DB (AW30-F03-D-B) - Modular Filter Regulator, G3/8 Port, With Auto Drain

SMC AW30F03DB Modular Filter Regulator — G3/8 Port, Auto Drain (N.O.), Bracket. SMC Series AW modular filter regulator, body size 30, G3/8 port, with float type auto drain (N.O.) and mounting bracket. Relieving type, 5 micron nominal filtration, polycarbonate bowl with bowl guard. Set pressure 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temp -5 to 60 C.

MPN: AW30-F03-D-B · SKU: AW30F03DB

AW30-F03-D-B Applications

Integrated filter-regulator module with G3/8 threaded ports for European-standard air-line piping. The mounting bracket allows rigid panel or frame installation, and the normally-open float auto drain continuously clears accumulated condensate, making it well suited to fixed-station machinery, assembly cells and pneumatic control panels needing clean, regulated supply air with hands-free drainage.

AW30-F03-D-B Specifications
