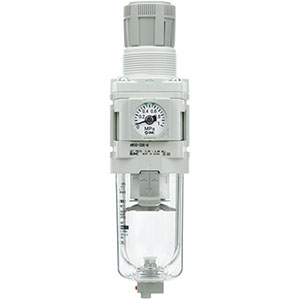

SMC AW30F03D (AW30-F03-D) - Modular Filter Regulator, G3/8 Port, Auto Drain

SMC AW30F03D Modular Filter Regulator — G3/8 port with N.O. float auto drain, 5 micron element and polycarbonate bowl. Combined modular filter and regulator, body size 30, G3/8 (Rc/G) port, 5 micrometer nominal filtration, polycarbonate bowl with bowl guard, N.O. float type auto drain, relieving type regulator, set pressure range 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temperature -5 to 60 C, drain capacity 25 cm3. Weight approx 0.40 kg.

MPN: AW30-F03-D · SKU: AW30F03D

AW30-F03-D Applications

Combines air filtration and pressure regulation in one compact modular body with a normally-open float-type automatic drain that discharges accumulated condensate without manual intervention. The 5 micron element removes particulate and water while the relieving regulator holds downstream pressure up to 0.85 MPa. Ideal for FRL air-preparation stations where continuous unattended draining keeps the bowl clear, such as machine tools, packaging lines and general factory automation.

AW30-F03-D Specifications
