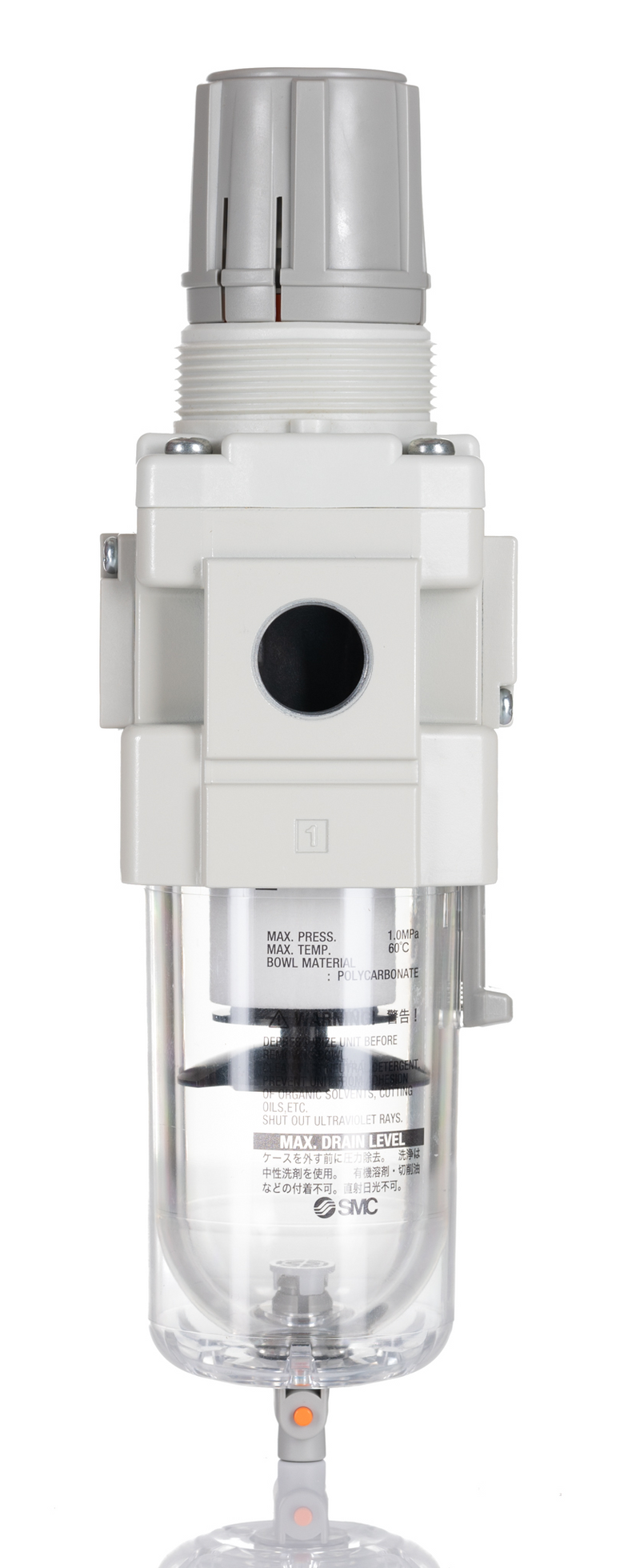

SMC AW30F03B (AW30-F03-B) - Modular Filter Regulator, G3/8 Port, Bracket Mount

SMC AW30F03B Modular Filter Regulator — G3/8 port with mounting bracket, 5 micron element and polycarbonate bowl. Combined modular filter and regulator, body size 30, G3/8 (Rc/G) port, 5 micrometer nominal filtration, polycarbonate bowl with bowl guard, relieving type regulator, set pressure range 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temperature -5 to 60 C, drain capacity 25 cm3, supplied with mounting bracket. Weight approx 0.40 kg.

MPN: AW30-F03-B · SKU: AW30F03B

AW30-F03-B Applications

Combines air filtration and pressure regulation in one compact modular body to save space and piping in FRL air-preparation lines. The 5 micron element removes solid particulate and condensed water while the relieving regulator sets and holds downstream pressure up to 0.85 MPa. The supplied bracket allows panel or frame mounting, and the unit connects directly to other AW30-size modular air-prep components. Suited to general factory automation, machine tools and pneumatic control panels.

AW30-F03-B Specifications
