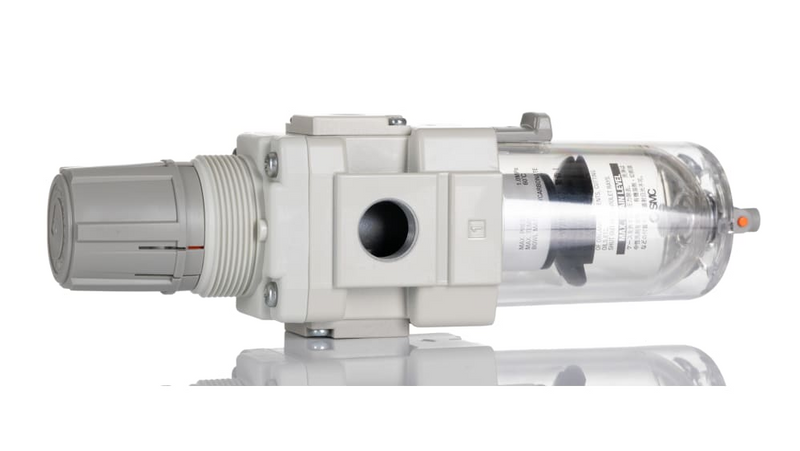

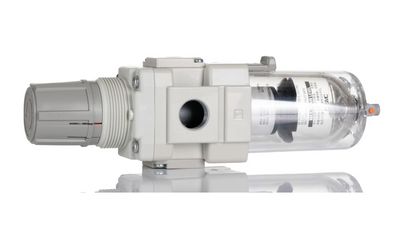

SMC AW3003ED (AW30-03-E-D) - Modular Filter Regulator, Rc3/8 Port, With Square Embedded Gauge

SMC AW3003ED Modular Filter Regulator — Rc3/8 Port, Square Embedded Gauge, Auto Drain (N.O.). SMC Series AW modular filter regulator, body size 30, Rc3/8 port, with square embedded type pressure gauge (with limit indicator) and float type auto drain (N.O.). Relieving type, 5 micron nominal filtration, polycarbonate bowl with bowl guard. Set pressure 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, ambient/fluid temp -5 to 60 C.

MPN: AW30-03-E-D · SKU: AW3003ED

AW30-03-E-D Applications

Combines filtration and pressure regulation in one compact module to save space and piping on a compressor air-line. The square embedded gauge gives an at-a-glance set-pressure readout, while the normally-open float auto drain automatically expels condensate without manual intervention, suiting machine tools, packaging lines and general factory automation where reliable clean, regulated air is required and drain access is inconvenient.

AW30-03-E-D Specifications
