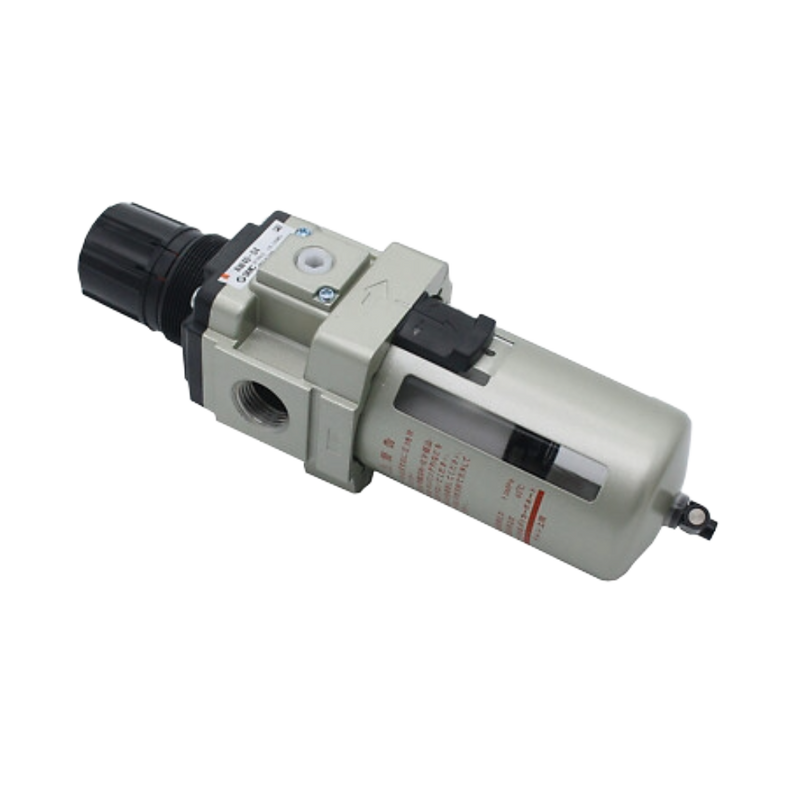

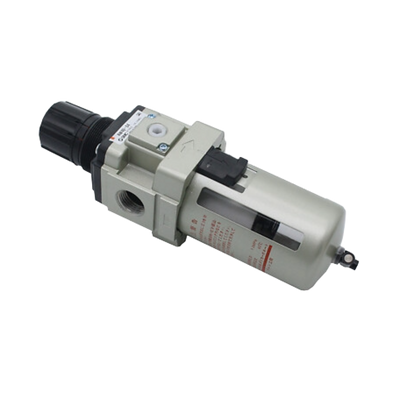

SMC AW3002BA (AW30-02B-A) - Filter Regulator, Rc 1/4 Port

SMC AW3002BA Filter Regulator — Rc 1/4 port, size 30, with bracket, polycarbonate bowl, no auto drain, no gauge. SMC AW30-A Series modular filter regulator, body size 30, Rc 1/4 port size. Combines a filter and regulator in one body. Supplied with mounting bracket, without auto drain, without pressure gauge. Element and bowl are in one piece for easy hand replacement, polycarbonate bowl with transparent bowl guard. Set pressure range 0.05 to 0.7 MPa, with drain cock, relieving type, flow left to right, pressure gauge in MPa. To be discontinued (September 2025); replacement series AW20-AW40-D.

MPN: AW30-02B-A · SKU: AW3002BA

AW30-02B-A Applications

Delivers filtered, pressure-regulated compressed air from a single compact unit for machine air preparation, saving space and piping versus separate filter and regulator. This AW30-A size 30 with Rc 1/4 ports ships with a mounting bracket for panel or frame installation and uses a one-piece element-and-bowl for tool-free maintenance. Note this A-series configuration is being discontinued (replacement AW20-AW40-D).

AW30-02B-A Specifications
