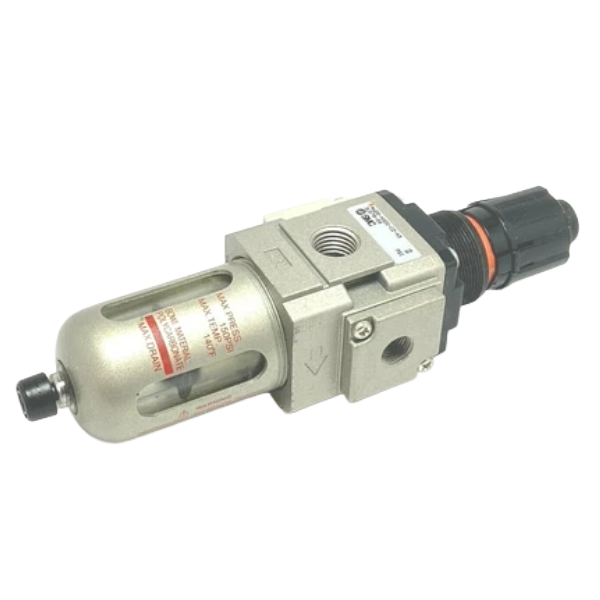

SMC AW20N02GCZ (AW20-N02CG-Z-D) - Modular Filter Regulator, NPT1/4 Port, With N.C. Auto Drain

SMC AW20N02GCZ Modular Filter Regulator — NPT1/4 port, N.C. float auto drain, round pressure gauge, psi/imperial units. SMC AW20-N02CG-Z-D (ordered as AW20N02GCZ) modular filter regulator combining a 5 micron air filter and relieving pressure regulator in one body. NPT1/4 ports, polycarbonate bowl, maximum operating pressure 1.0 MPa, set pressure range 0.05 to 0.85 MPa, ambient and fluid temperature -5 to 60 C. Configured with N.C. float type auto drain, round type pressure gauge (with limit indicator) and imperial (psi, F) name plate / bowl caution plate with MPa/psi dual scale pressure gauge. Drain capacity 8 cm3..

MPN: AW20-N02CG-Z-D · SKU: AW20N02GCZ

AW20-N02CG-Z-D Applications

Fitted at the inlet of a pneumatic circuit to remove particulates and regulate supply pressure in one modular unit. The NPT1/4 thread and psi/imperial labelling with a dual-scale MPa/psi gauge suit North American installations. The N.C. float auto drain automatically discharges condensate to reduce maintenance, and the round gauge gives clear outlet pressure indication. Suited to automated machinery and equipment needing clean, stable air with imperial-unit pressure monitoring.

AW20-N02CG-Z-D Specifications
