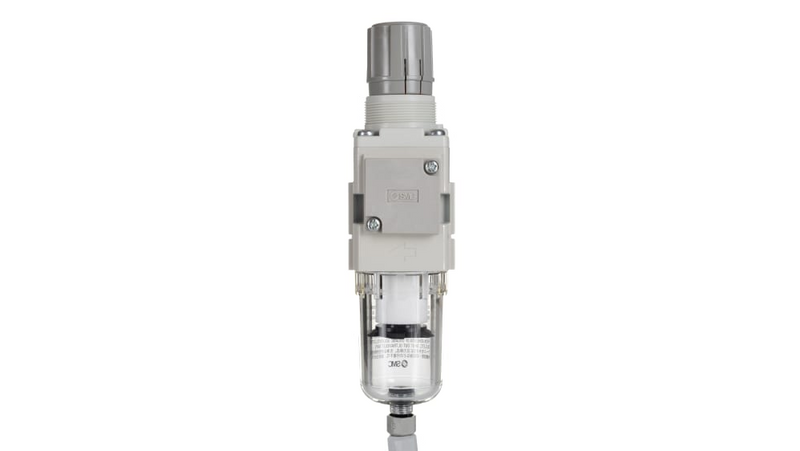

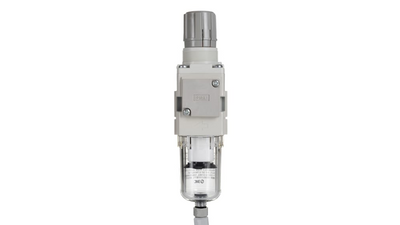

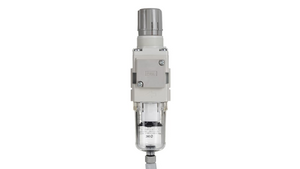

SMC AW20N02BG2NZD (AW20-N02BG-2NZ-D) - Modular Filter Regulator, NPT1/4 Port, With Round Pressure Gauge

SMC AW20N02BG2NZD Modular Filter Regulator — NPT1/4 port, with bracket, round pressure gauge, metal bowl, non-relieving type, psi/imperial units. SMC AW20-N02BG-2NZ-D modular filter regulator combining a 5 micron air filter and pressure regulator in one body. NPT1/4 ports, metal bowl, maximum operating pressure 1.0 MPa, set pressure range 0.05 to 0.85 MPa, ambient and fluid temperature -5 to 60 C. Configured with mounting bracket, round type pressure gauge (with limit indicator), non-relieving type exhaust mechanism and imperial (psi, F) name plate / bowl caution plate with MPa/psi dual scale pressure gauge. Drain capacity 8 cm3..

MPN: AW20-N02BG-2NZ-D · SKU: AW20N02BG2NZD

AW20-N02BG-2NZ-D Applications

Installed at the inlet of a pneumatic system to filter particulates and regulate supply pressure in one modular unit. The NPT1/4 thread and psi/imperial-unit labelling with a dual-scale MPa/psi gauge suit North American installations where pressure is read in psi. The metal bowl provides durability, the round gauge gives clear indication, and the bracket eases mounting. The non-relieving construction does not exhaust downstream pressure through the regulator. Suited to rugged industrial machinery requiring clean, stable air with imperial-unit monitoring.

AW20-N02BG-2NZ-D Specifications
