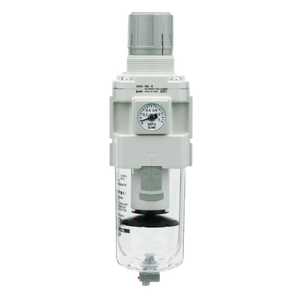

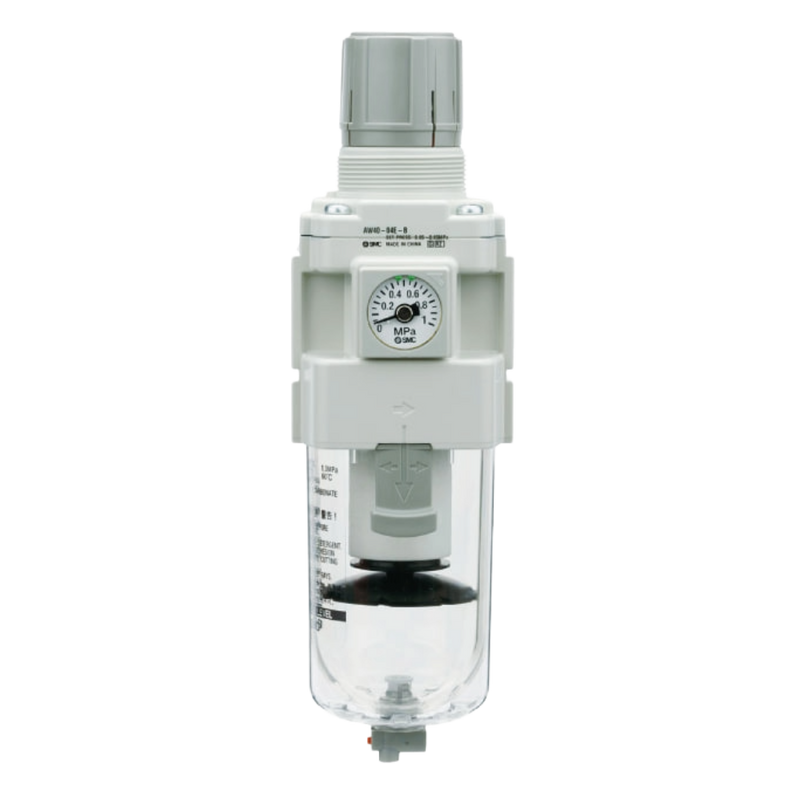

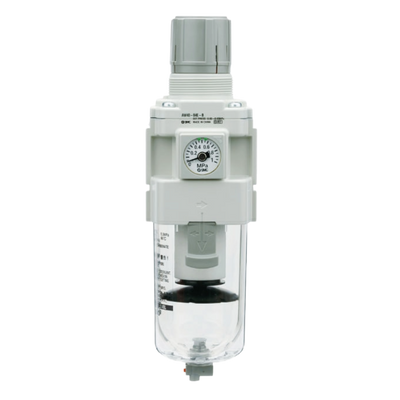

SMC AW20N02BG2ND (AW20-N02BG-2N-D) - Modular Filter Regulator, NPT1/4 Port, With Round Pressure Gauge

SMC AW20N02BG2ND Modular Filter Regulator — NPT1/4 port, with bracket, round pressure gauge, metal bowl, non-relieving type. SMC AW20-N02BG-2N-D modular filter regulator combining a 5 micron air filter and pressure regulator in one body. NPT1/4 ports, metal bowl, maximum operating pressure 1.0 MPa, set pressure range 0.05 to 0.85 MPa, ambient and fluid temperature -5 to 60 C. Configured with mounting bracket, round type pressure gauge (with limit indicator) and non-relieving type exhaust mechanism. Drain capacity 8 cm3..

MPN: AW20-N02BG-2N-D · SKU: AW20N02BG2ND

AW20-N02BG-2N-D Applications

Fitted at the inlet of a pneumatic circuit to filter particulates and regulate supply pressure in one modular unit. The NPT1/4 thread suits North American piping, while the durable metal bowl withstands harsher environments than polycarbonate. The round pressure gauge gives clear outlet pressure indication and the bracket eases mounting. The non-relieving construction does not exhaust excess downstream pressure through the regulator, appropriate where back-relief is not wanted. Suited to industrial machinery requiring rugged, clean, stable air.

AW20-N02BG-2N-D Specifications
