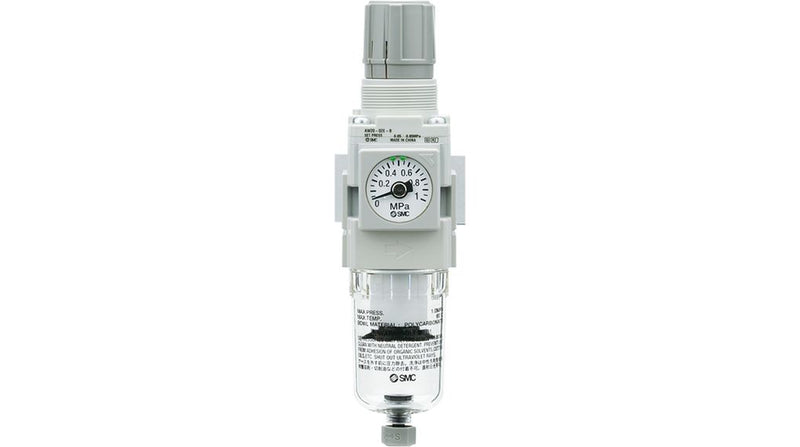

SMC AW20F02EB (AW20-F02E-B) - Modular Filter Regulator, G1/4 Port, With Square Embedded Pressure Gauge

SMC AW20F02EB Modular Filter Regulator — G1/4 port, square embedded pressure gauge, with bracket. SMC AW20-F02E-B modular filter regulator combining a 5 micron air filter and relieving pressure regulator in one body. G1/4 (ISO 228) ports, polycarbonate bowl, maximum operating pressure 1.0 MPa, set pressure range 0.05 to 0.85 MPa, ambient and fluid temperature -5 to 60 C. Fitted with a square embedded type pressure gauge (with limit indicator) and mounting bracket. Drain capacity 8 cm3. Note: this configuration was discontinued by SMC in March 2025, replaced by the AW20-AW40-D series.

MPN: AW20-F02E-B · SKU: AW20F02EB

AW20-F02E-B Applications

Placed at the inlet of a pneumatic line to filter particulates and set a stable regulated pressure. The square embedded pressure gauge with limit indicator is flush with the body for compact installation and clear at-a-glance monitoring of outlet pressure. The G1/4 parallel thread suits ISO 228 piping, and the bracket supports panel or frame mounting. Suited to machinery and assembly equipment where visible pressure indication and clean air are required.
