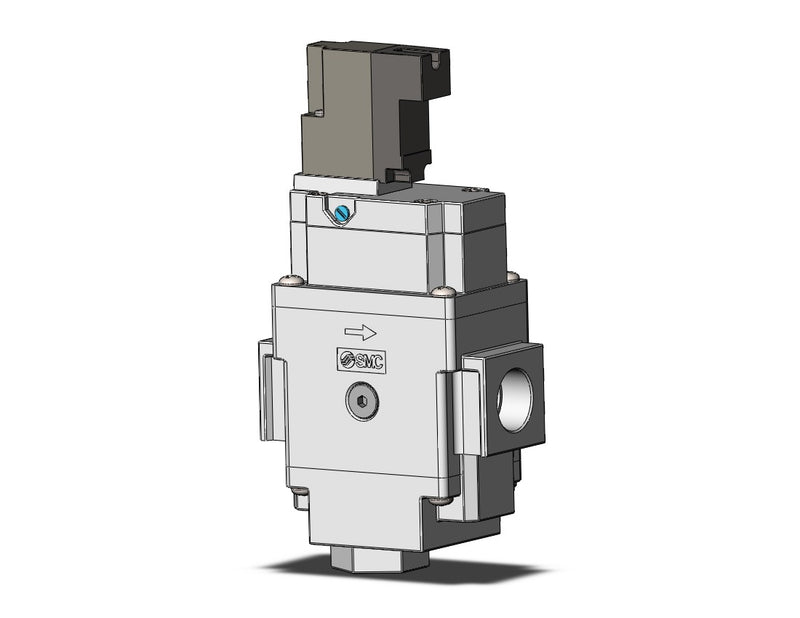

SMC AV3000F035YOBA (AV3000-F03-5YOB-A) - Soft Start-Up Valve, G3/8 Port

SMC AV3000F035YOBA Soft Start-Up Valve — G3/8 port, 24 VDC, Type Y DIN terminal without connector, no surge suppressor. SMC AV3000-A Series slow start-up (soft start) valve, body size 30, G3/8 port size (P and A), solenoid pilot operated. 24 VDC coil, Type Y DIN terminal electrical entry without connector, no surge voltage suppressor, push-turn locking slotted manual override. Power consumption 0.35 W, C = 9.2 dm3/(s.bar). Flow direction left to right, name plate and pressure gauge in SI units (MPa). Gradually raises initial pressure on start-up and quickly exhausts residual pressure when air supply is cut off.

MPN: AV3000-F03-5YOB-A · SKU: AV3000F035YOBA

AV3000-F03-5YOB-A Applications

Installed at a pneumatic system inlet to gradually raise initial supply pressure on start-up and prevent abrupt actuator movement, and to quickly release residual pressure when the supply is shut off. The AV3000-A size 30 with G3/8 (BSPP) ports suits export machines using G threads. Type Y DIN terminal entry without connector lets the user fit their own DIN plug for panel and PLC wiring.

AV3000-F03-5YOB-A Specifications
