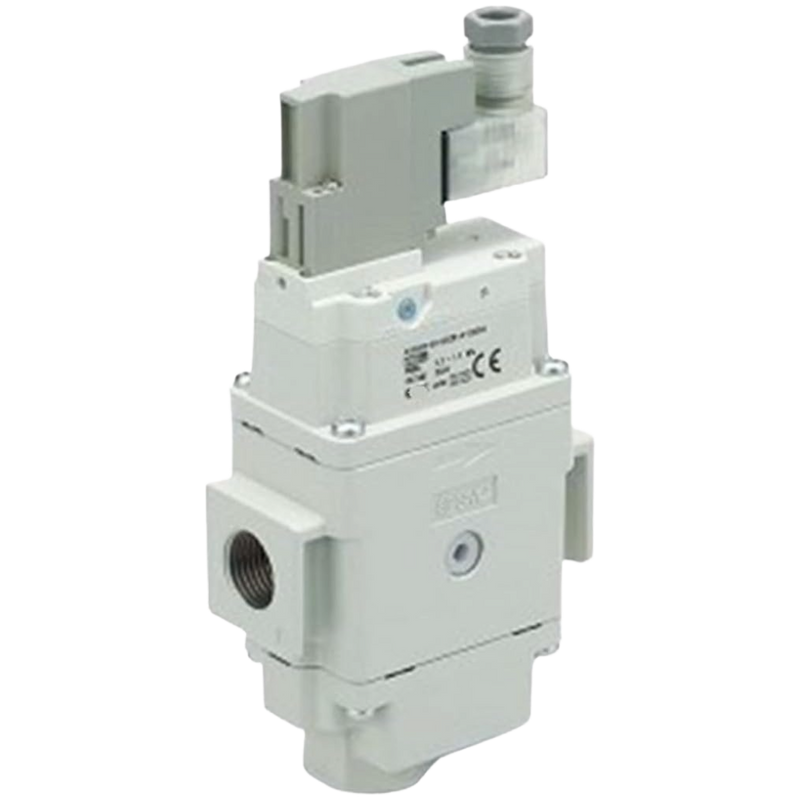

SMC AV3000035DZBA (AV3000-03-5DZB-A) - Soft Start-Up Valve, Rc 3/8 Port

SMC AV3000035DZBA Soft Start-Up Valve — G3/8 (Rc 3/8) port, 24 VDC, Type D DIN terminal with connector and light/surge voltage suppressor. SMC AV3000-A Series slow start-up (soft start) valve, body size 30, Rc 3/8 port size (P and A), solenoid pilot operated. 24 VDC coil, Type D DIN terminal electrical entry with connector, with light/surge voltage suppressor, push-turn locking slotted manual override. Power consumption 0.35 W, C = 9.2 dm3/(s.bar). Flow direction left to right, name plate and pressure gauge in SI units (MPa). Gradually raises initial pressure on start-up and quickly exhausts residual pressure when air supply is cut off.

MPN: AV3000-03-5DZB-A · SKU: AV3000035DZBA

AV3000-03-5DZB-A Applications

Used at the inlet of a pneumatic system to slowly build up initial supply pressure on start-up, preventing sudden actuator lunge, and to rapidly exhaust residual pressure when the air supply is switched off for safe maintenance. The AV3000-A size 30 with Rc 3/8 ports suits mid-size air preparation lines. Its 24 VDC solenoid with DIN connector and surge suppressor integrates into machine control panels and PLC outputs.

AV3000-03-5DZB-A Specifications
