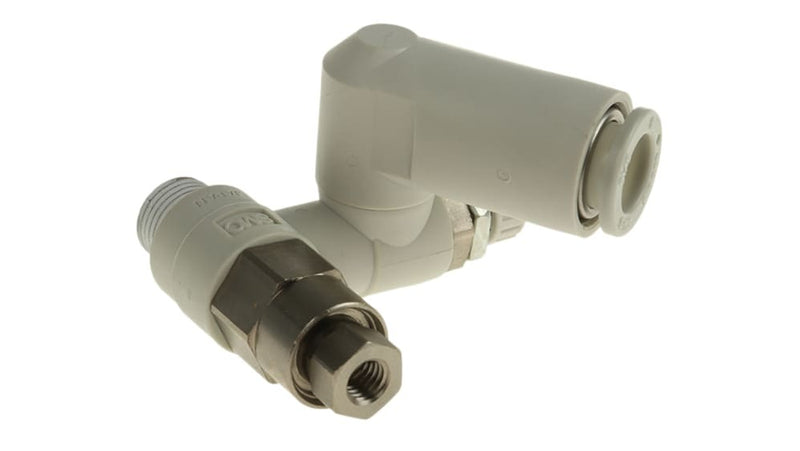

SMC ASP330F0108S (ASP330F-01-08S) - Speed Controller with Pilot Check Valve, R1/8 x Φ8 mm one-touch fitting, pilot check valve speed controller

SMC ASP330F0108S Speed Controller with Pilot Check Valve — With pilot check valve, R1/8 cylinder port with Φ8 mm one-touch fitting (vs Φ6 mm on ASP330F0106S), hexagon lock nut. ASP Series speed controller combined with a pilot check valve and one-touch fitting. Body size 3 (1/8 standard). Port size 01: cylinder side R1/8, pilot port M5 x 0.8. Applicable tubing O.D. Φ8 mm. Hexagon lock nut option (S). The pilot check valve enables momentary intermediate stopping of a cylinder while retaining speed adjustment.

MPN: ASP330F-01-08S · SKU: ASP330F0108S

ASP330F-01-08S Applications

The ASP330F-01-08S is the Φ8 mm tubing variant of SMC's ASP330F pilot-check speed controller. It combines a pilot check valve with meter-out speed control so a cylinder can be stopped and held mid-stroke and released on pilot signal, connecting on the cylinder side by R1/8 thread with an M5 pilot port. Chosen for higher-flow lines needing drop-prevention or safe holding of vertical pneumatic loads.

ASP330F-01-08S Specifications
